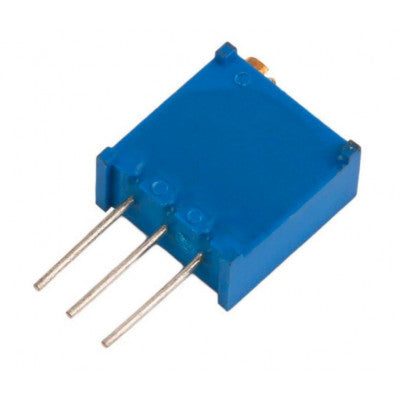

20 ohm Variable Resistor - Trimpot (3296 Package)
High accuracy variable resistor with 3 terminal pins for PCB mounting
- Track Resistance: 20 ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 20 ohm
- Resistor Element Material: Variable Rotary Trimmer
Top Features:
- High accuracy
- 3 terminal pins
- Variable voltage output
- Rotary cermet for adjustment
The Trimpot is a high accuracy variable resistor designed for PCB mounting. It features 3 terminal pins, with the voltage between the terminals varying as the trimpot is rotated. This variable resistor is commonly used for variating voltage in a circuit, with the outer two pins connected to Vcc and 0V, and the center pin outputting a variable voltage between 0V and Vcc as the rotary cermet is rotated.
The package includes 1 x 20 ohm Variable Resistor - Trimpot (3296 Package).
* Images are for illustration only; actual product may vary.
