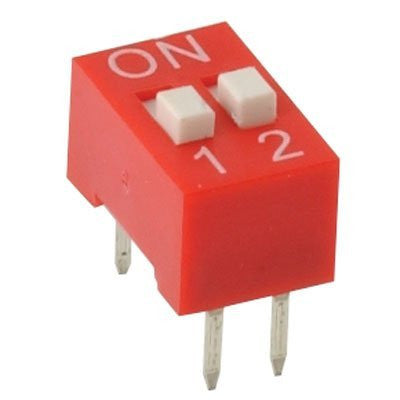

2.54mm Pitch 2 Way DIP Slide Switch
A versatile slide switch for various electronic applications.
- Voltage: 30V DC
- Operating Current (A): 0.15
- No. of Pins: 2
- Pin Spacing (mm): 2.54
- Mounting Type: Through Hole
- Operating Temperature Range (°C): -40 to 85
- Mech. & Electrical Lifecycle: 2000
- Length (mm): 6.6
- Width (mm): 9.8
- Height (mm): 6.5
- Weight (gm): 0.1 (approx) (each)
Key Features:
- 2.54mm pitch
- 2-way DIP slide switch
- Through-hole mounting
- Operating temperature: -40 to 85°C
The slide switch is widely used in the modulation of the CPU, wireless communication, broadcast, and TV, in the software programming for automated equipment, and in the self-control of NC equipment and other instruments and meters.
Package Includes: 5 x 2.54mm Pitch 2 Way DIP Slide Switch
* Images are for illustration only; actual product may vary.
