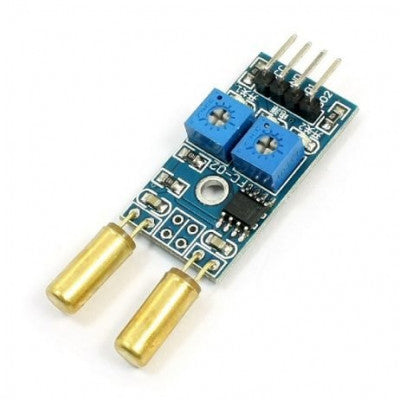

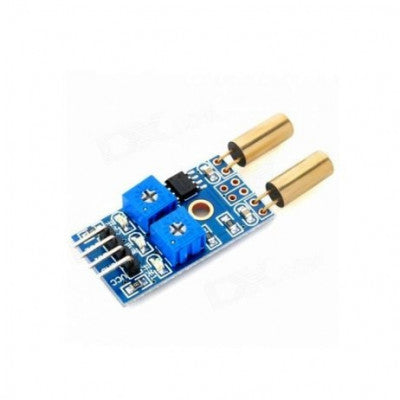

Tilt Sensor Module
A digital tilt sensor module with high sensitivity and easy installation.
- Operating Voltage: 3.3V-12V
- Maximum Output Current: 15mA
- Operating Temperature: 0°C to +80°C
- Length(mm): 50
- Width(mm): 18
- Height(mm): 15
- Weight(g): 6
Top Features:
- Operating voltage 3.3V-12V
- Digital switching outputs (0 and 1)
- A fixed bolt hole for easy installation
- Small board PCB size: 3.2cm x 1.7cm
The tilt sensor module comes with the basic components for operation. Simply supply power and attach it to an object to detect tilting. It uses SW-460D or SW-520D tilt sensor, a ball rolling type with a high sensitivity for tilt detection. The module features an M3 mounting hole for easy attachment and provides a tilt switch for visual indication.
The module outputs logic LOW when untilted and logic HIGH when tilted over the threshold angle (45 to 130 degrees). It can also function as a vibration sensor. Connect the output directly to an MCU or microcontroller like PIC or Arduino for tilt detection capability.
*Images are for illustration only; actual product may vary.
