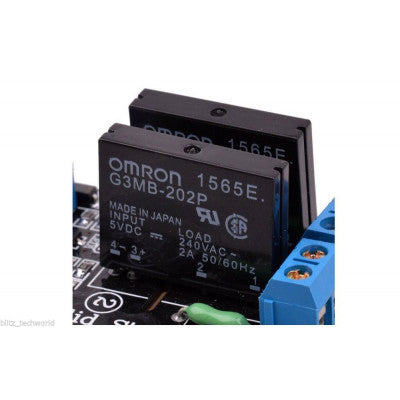

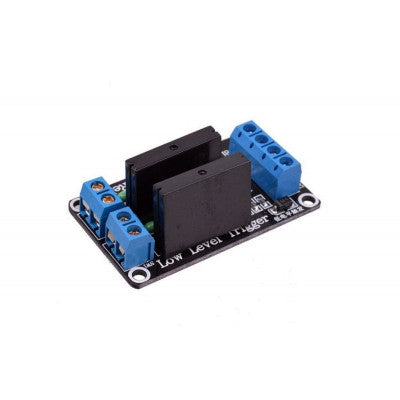

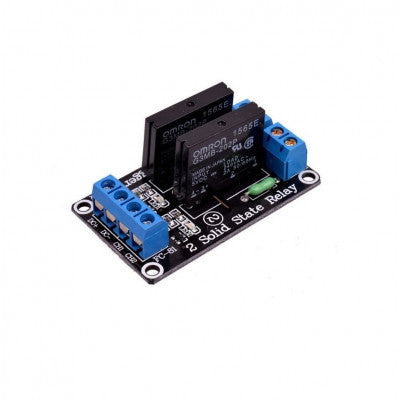

2 Channel 5V SSR G3MB-202P Solid State Relay Module
Control up to 2A at 240VAC with this versatile SSR module.
- Trigger Voltage: 5VDC
- Trigger Current: 2mA
- Working Current: 16mA
- Switching Voltage: 240VAC @ 2A
- Isolation: Phototriac
- Length: 55mm
- Width: 33mm
- Height: 25mm
- Weight: 20g
Features:
- 2 channel 2 AMP Solid State Relay board
- Control 2 loads of up to 2 amps each at 120V or 240V AC
- Good for lighting, holiday displays etc.
- Assembled and electrically tested
This 2 Channel 5V SSR Solid State Relay Module is capable of switching AC voltages between 100 and 240V at up to a 2A current. The module can be controlled from a 5V digital source such as an Arduino microcontroller. A resistive type fuse is provided on the module to help protect excessive current draw. This is a 2 Channel SSR relay module, each relay channel has 2 separate terminals. A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay. When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring, this will turn on or off the connected load.
High-level trigger refers to the signal trigger end (IN) having a positive voltage and the negative pole of the power supply is usually between, and the triggering end of a trigger connected with the positive pole of a power supply. When the trigger end has a positive voltage or reached the trigger voltage, the relay is attracted. Low-level trigger refers to the signal triggering voltage between the end and the negative electrode of the power supply is 0V, or trigger terminal voltage lower voltage than the positive power supply voltage, low to can trigger, make the relay. It is usually the cathode of the power supply and the triggering end of a trigger mode connection, so that the relay is attracted.
Package Includes:
- 1 x 2 Channel 5V SSR Solid State Relay Module
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
