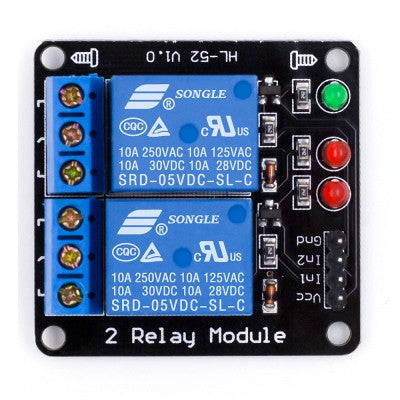

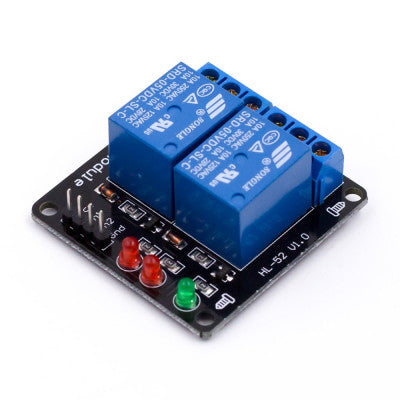

2 Channel 5V Relay Module
Control various appliances and equipment with large current
- Operating Voltage: 2.5 ~ 5.5 VDC
- Trigger Voltage: 5 VDC
- Trigger Current: 20 mA
- Switching Voltage (AC): 250V @ 10A
- Switching Voltage (DC): 30V @ 10A
- Operating Temperature: -40 to 85°C
- Opt. Relative Humidity: 20% - 85%
- Storage Condition: -65 to 125°C
- Length: 43 mm
- Width: 43 mm
- Height: 17 mm
- Weight: 25 gm
Features:
- Single relay control
- AC voltage 250V, AC current 10A
- DC voltage 30V, DC current 10A
- Power indicator (green)
The 2 Channel 5V Relay module is equipped with high-current relays suitable for controlling various appliances and equipment with large current. It can be directly controlled by Microcontrollers such as 8051, AVR, PIC, DSP, ARM, MSP430, and TTL logic. The module has indication LEDs for relay output status and is easy to install with fixed bolt holes.
Package Includes:
- 1 x 5V 2 Channel Relay Module
Images are for illustration only; actual product may vary.
