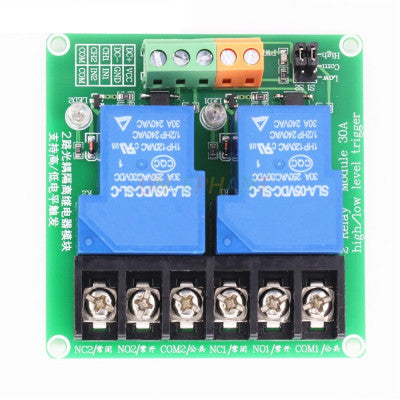

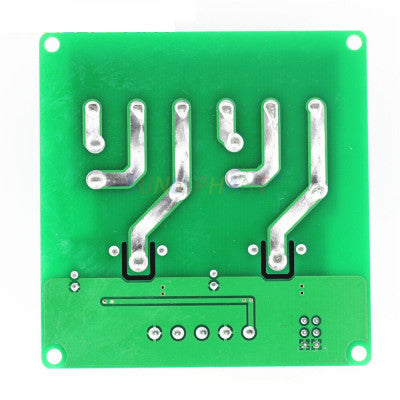

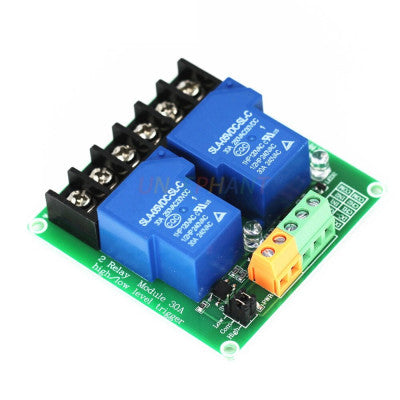

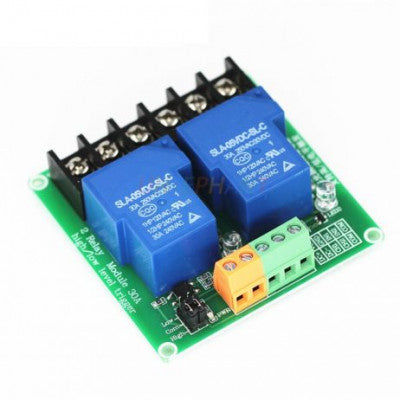

2-Channel Relay Module High/Low-Level Triggering Optocoupler Isolation Load 30A DC 5V / AC 250V
A versatile relay module for PLC automation with high-power relay and optocoupler isolation.
- Supply Voltage: DC 5V
- Quiescent Current: 5mA
- Maximum Operating Current: 190mA
- Trigger Mode: High and low-level trigger
- Load Voltage: DC 30V / AC250V
- Load Current: 30A
- Relay Life: more than 100,000 times
- Package Includes: 1 x 2 Channel Relay Module, 30A 5V Supports High and Low Trigger Optocoupler
Features:
- High-power relay for DC 5V 30A / AC 250V 30A control
- Optocoupler isolation for anti-interference
- Compliance with international safety standards
- LED indication for each relay channel
Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
Images are for illustration only; actual product may vary.
