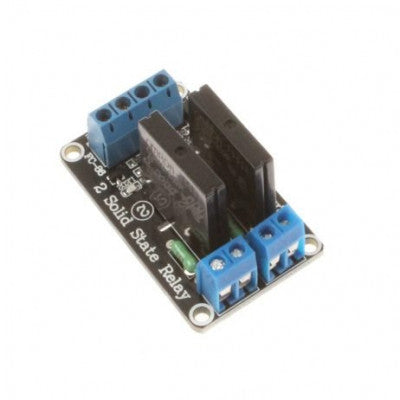

2 Channel 3-24V Solid State Relay Module
A versatile solid-state relay module for controlling high-voltage AC loads
- Part Number: H3MB-052D
- Power supply: 3-24VDC/160mA
- Trigger Voltage (VDC): 3-24
- Switching Voltage (VAC): 50@2A
- Isolation: Phototriac
- Zero Cross: Yes
- Length (mm): 57
- Width (mm): 30
- Height (mm): 24
- Weight (gm): 18
Features:
- 2-channel 2 AMP Solid State Relay board
- Control 2 loads of up to 2 amps each at 50 V DC
- Good for lighting, Holiday displays, etc
- Assembled and electrically tested
A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. They accomplish this by using infrared light as the contact, a solid-state relay is really just an IR LED and a photo Triac sealed up into a little box. Solid-state relays have several advantages over mechanical relays. A Solid State Relay is similar 2 Channel 5V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanic relay. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relay scan be switched much faster and for much longer periods without wearing out.
Input Parts:
- DC+: connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
Use it to control various appliances and other equipment with a large current. It can be controlled directly by a Microcontroller.
Package Includes: 1 x 2 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
* Images are for illustration only; actual product may vary.
