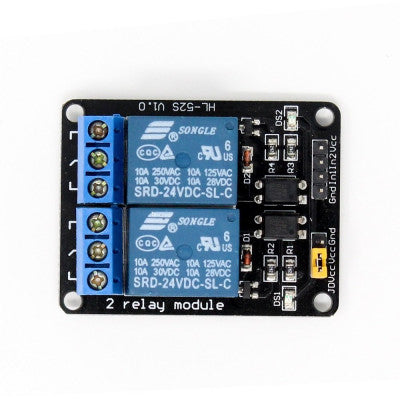

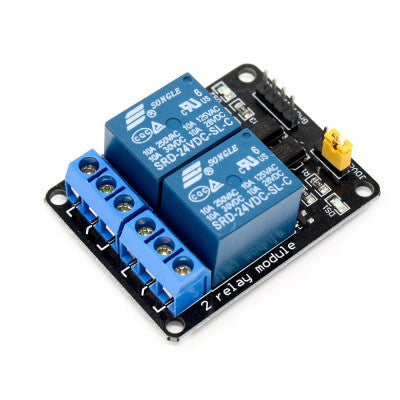

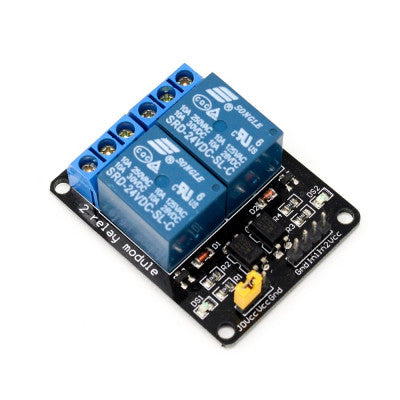

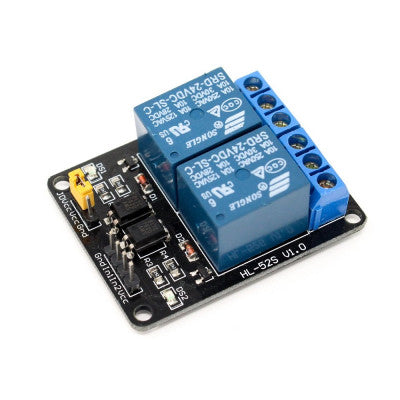

2 Channel 24V Relay Module with Optocoupler
Reliable and stable relay module with optical coupling isolation
- Channel: 2
- Trigger Voltage (VDC): 24
- Trigger Current (mA): 20
- Switching Voltage (VAC): 250 @ 10A
- Switching Voltage (VDC): 30 @ 10A
- Length (mm): 50
- Width (mm): 40
- Height (mm): 20
- Weight (gm): 30
Top Features:
- High-current relay 10A @ 250VAC / 10A @ 30VDC
- Controls both AC and DC appliances
- High-quality screw terminals for easy connection
- LED status indicators for relay status
This 2 Channel 24V Relay Module with Optocoupler meets safety standards with isolation grooves between control and load areas. The module features a double FR4 circuit board design with a high-end SMT process for reliability. It is suitable for a wide range of microcontrollers like Arduino, AVR, PIC, and ARM.
The module interface includes connections for power supply, ground, and trigger signals. It supports high-level and low-level triggers for versatile applications. The relay terminals (C, NC, NO) are easily accessible through screw terminals, simplifying wiring.
Equipped with a freewheeling diode, this module protects your microcontroller while controlling various equipment and loads. The package includes 1 x 2 Channel 24V Relay Module with Optocoupler.
*Images are for illustration only; actual product may vary.
