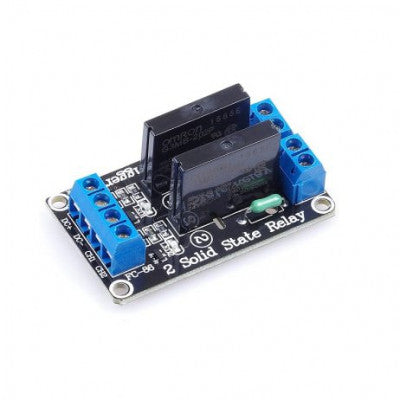

24V 2 Channel SSR Solid State Relay Module 250V 2A Output with Resistive Fuse
Control up to 2A at 240VAC with this 2 Channel SSR relay module
- Part Number: G3MB-202P
- Working current(mA): 12.5
- Trigger Current (mA): 2
- Trigger Voltage (VDC): 24
- Switching Voltage (VAC): 250@2A
- Max. Load: 2A @250V AC
- Length (mm): 50
- Width (mm): 30
- Height (mm): 24
- Weight (gm): 19
Top Features:
- 2 channel 2 AMP Solid State Relay board
- Good for lighting, holiday displays, etc.
- Assembled and electrically tested
- Led indicator for each relay
This 2 Channel SSR Solid State Relay Module is based on the Omron G3MB-202P SSR relay, allowing control of up to 2A at 240VAC. Each relay channel has three separate terminals: NO (Normal Open), COM (Common), NC (Normal Closed). Solid State Relays, like this one, can be controlled through a digital signal, generating no noise and having a longer lifespan compared to traditional mechanical relays.
When the input logic voltage is applied to the coil, the NC disconnects from the COM, breaking the conductivity between them. Simultaneously, the NO connects with the COM, allowing conductivity between them. This action turns on or off the connected load based on your wiring.
Input parts:
- DC+: connect power positive
- DC-: connect power negative
- CH1: relay module signal trigger point (Effective low-level trigger)
- CH2: relay module signal trigger point (Effective low-level trigger)
Use this module to control various appliances and equipment with a large current. It can be directly controlled by a Microcontroller.
Package Includes: 1 x 2 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse
Images are for illustration only; actual product may vary.
