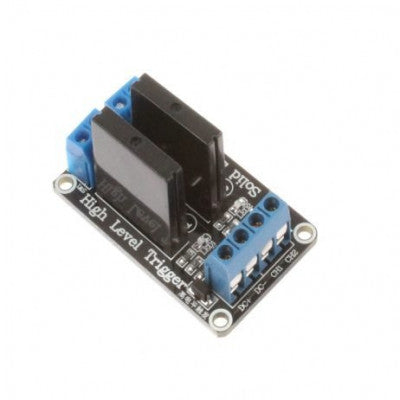

2 Channel 12V Solid State Relay Module
A versatile solid-state relay module for controlling high-voltage AC loads with ease.
- Part Number: G3MB-202P
- Power supply: 12VDC/160mA
- Switching Voltage (VAC): 240@2A
- Isolation: Photo triac
- Zero Cross: Yes
- Length (mm): 50
- Width (mm): 30
- Height (mm): 24
- Weight (gm): 18
Top Features:
- 2-channel 2 AMP Solid State Relay board
- Control 2 loads of up to 2 amps each at 240 V AC
- Assembled and electrically tested
- Led indicator for each relay
A solid-state relay (SSR) functions like a mechanical relay but with the advantages of generating no noise and having a longer lifespan. It can be controlled through a digital signal, making it versatile for various applications. When the input logic voltage is applied, the relay module triggers the connected load accordingly.
The input parts include DC+ connected to VCC, DC- connected to GND, CH1 for relay module signal trigger point, and CH2 for relay module signal trigger point.
Use this 2 Channel 12V Relay Module to control appliances and equipment with large currents directly through a microcontroller.
* Images are for illustration only; actual product may vary.
