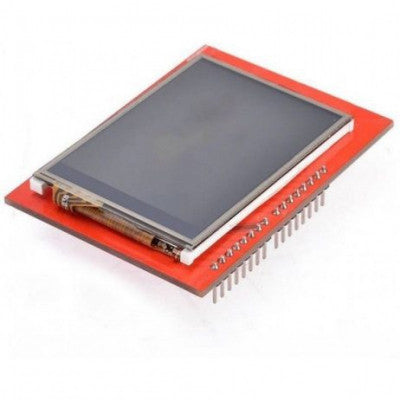

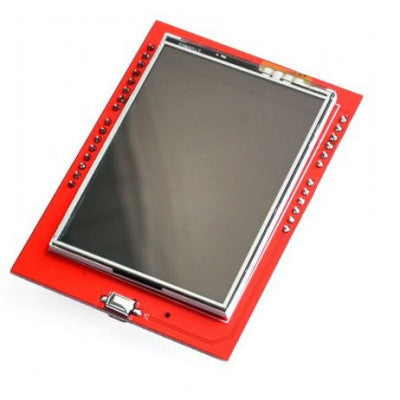

2.4 Inch Touch Screen TFT Display Shield
Add a touch up to your Arduino project with a large touchscreen display shield.
- Resolution: 240320 pixels
- Supply Voltage: 5V
- Working Temperature: -30°C to 70°C
- Compatible Boards: Arduino UNO and Mega
- Length (mm): 72
- Width (mm): 52
- Height (mm): 12
Top Features:
- 2.4" diagonal Touch LCD TFT display
- 240320 resolution, 18-bit color
- 8-bit digital interface, 4 control lines
- 5V compatible, works with 3.3V or 5V logic
This TFT display is big (2.4" diagonal), bright, and colorful with 240320 pixels and individual pixel control. It offers way more resolution than a black and white 12864 display.
Onboard 3.3V 300mA LDO regulator and uses digital pins 5-13 and analog 0-3. Pin 12 is available if not using the microSD. Compatible with any Arduino Uno and mega compatible boards.
Package Includes:
- 1 x 2.4 Inch Touch Screen TFT Display Shield for Arduino UNO Mega
- 1 x Stylus Pen
Images are for illustration only; actual product may vary.
