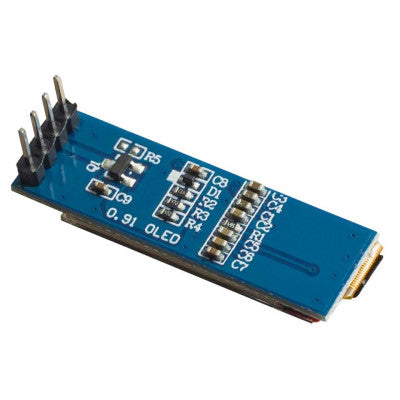

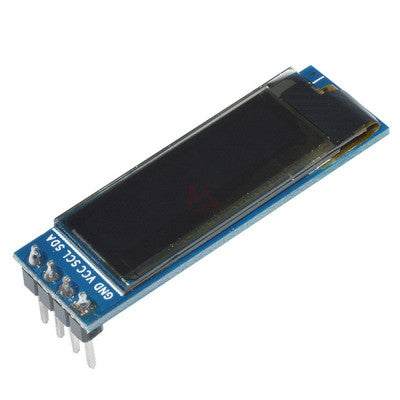

2.32 cm (0.91 inch) I2C/IIC 128x32 OLED Display Module - Blue Color
Compact OLED display module with high resolution and wide viewing angle
- OLED Driver IC: SSD1306
- Operating Voltage: 3.3-5V
- Resolution: 128 x 32
- Text Color: Blue
- Background Color: Black
- Full Compatible with Arduino
- Working temperature: -30°C ~ 70°C
- Interface: I2C
- Datasheet: SSD1306 Datasheet
Top Features:
- Work without back light
- 128*32 high resolution
- Ultra wide viewing angle
- Self-illuminating display
The 2.32 cm (0.91 inch) I2C/IIC 128x32 OLED Display Module in Blue Color offers 128×32 pixel resolution. It is thinner than LCD displays, providing good brightness and true colors. OLED displays do not require a back-light like LCD/LED screens, utilizing Electroluminescence for energy-efficient "glowing" displays.
This OLED Display Module is compact and enhances user interface experience in Arduino projects. It connects to Arduino via the I2C (IIC) serial interface, displaying blue text on a black background with excellent contrast at DC 2.8V supply. The module also offers a wide viewing angle.
Pin Description:
- GND: Power Ground
- VCC: Power + (DC 3.3 ~5v)
- SCL: Clock Line
- SDA: Data Line
The 2.32 cm (0.91 inch) I2C/IIC 128x32 OLED Display Module is fully compatible with various controlling chips, including Arduino, and offers better performance than traditional LCD and LED displays.
