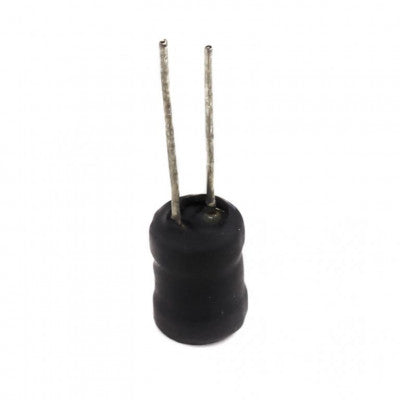

2.2uH 9x12mm Radial Leaded Power Inductor
A small choke coil power inductor with high Q factor and magnetic shielding.
- Inductance: 2.2H
- Tolerance(%): 10
- Mounting Type: Through Hole
- DC Resistance (DCR) (m) at 20C: 0.16
- Current Rating (A): 1.2
- Frequency (Hz): 1000
- Operating Temperature Range (C): -40 to 85
- Length (mm): 9
- Width (mm): 12
- Weight (gm): 1 (approx)
Features:
- Small size
- High Q factor
- High self-resonance frequency
- Small magnetic flux leakage
The 2.2uH 9x12mm Radial Leaded Power Inductor is a wire wound choke coil power inductor with leads for through-hole mounting. It is commonly used in motherboards for laptops and desktop computers, DC/DC converters in distributed power systems, and VRM applications. This power inductor, also known as a choke coil or differential mode inductor, helps limit the alternating current through the coil.
It offers a high Q factor, high self-resonance frequency, small magnetic flux leakage, and good magnetic shielding. Additionally, it is RoHS free, ensuring environmental compliance.
Applications:
- Motherboards for laptop and desktop computers
- DC/DC converter in distributed power systems or VRM Applications
- Inductor for general purpose use
Images are for illustration only; actual product may vary.
