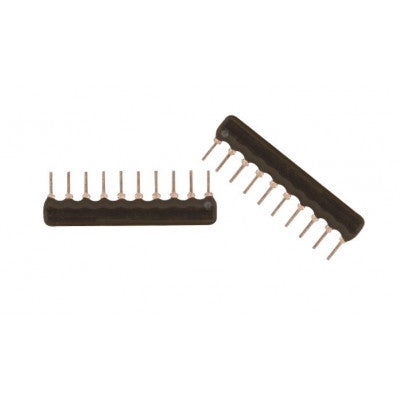

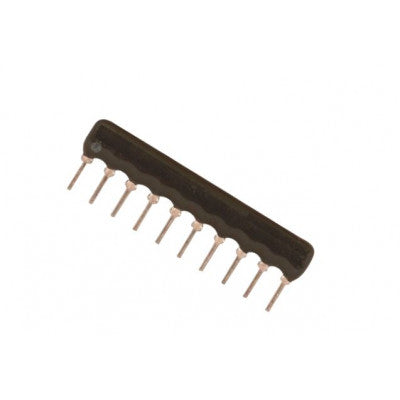

2.2K Ohm Through Hole Resistor Network
A passive nine-terminal electrical component with nine 2.2K ohms resistances and one common ground.
- Resistance: 2.2K Ohms
- Tolerance: ±5%
- Maximum Working Voltage: 100(V)
- Maximum Overload Voltage: 150(V)
- Mounting Type: Through Hole
- Power Rating: 1/8 Watt
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Color: Black
- Pins: 10
- Resistors: 9
Top Features:
- 2.2K Ohm Resistance
- 9 Resistors in One
- Through Hole Mounting
- Wide Operating Temperature Range
The resistor array is designed to provide nine 2.2K ohms resistances and one common ground, making it a versatile component for various electronic applications. With a tolerance of ±5% and a power rating of 1/8 Watt, this resistor network ensures reliable performance. It has a maximum working voltage of 100V and can withstand overload voltages up to 150V. The through-hole mounting type allows for easy installation on PCBs.
Operating within a temperature range of -55°C to 155°C, this resistor network offers stability across different environmental conditions. The black color and 10 pins make it easily identifiable and compatible with standard electronic setups.
- Maximum Short Time Overload: Not specified
- Minimum Insulation Resistance: Not specified
- Dielectric Withstanding Voltage: No evidence of flashover, mechanical damage, arcing, or insulation breakdown
- Maximum Terminal Strength: Not specified
- Maximum Resistance to Soldering Heat: Not specified
Package Includes: 1 x 2.2K ohm 10 Pin Resistor Network - SIP
