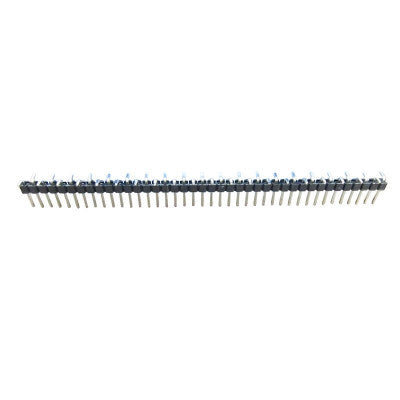

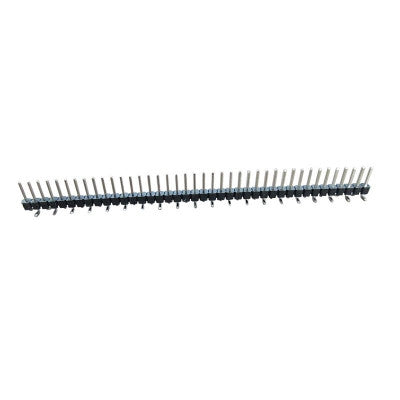

2.54mm 1x40 Pin Male Single Row SMT Header Strip
A single row of 40 pins, ideal for surface mounting in tight spaces.
- Connector: Header Strip
- Gender: Male
- Mounting Type: SMD/SMT
- Pin Spacing (mm): 2.54
- Contact Material: Phosphor Bronze
- Contact Resistance: 20m
- Insulation Material: PBT UL 94V-0
- Insulation Resistance (M): 1000
- Length (mm): 101
- Width (mm): 2.5
- Height (mm): 9
- Weight (gm): 2
Top Features:
- 40-pin single row
- 2.54mm pin spacing
- Male connector
- Surface mount technology
Ideal for surface mounting applications where space is limited, the 2.54mm 1x40 Pin Male Single Row SMT Header Strip features a single row of 40 pins. The male connector is made of phosphor bronze with a contact resistance of 20m. The insulation material is PBT UL 94V-0, providing excellent insulation resistance of 1000M. With a length of 101mm, width of 2.5mm, height of 9mm, and weighing only 2 grams, this header strip is a compact and reliable solution for your SMT needs.
* Images are for illustration only; actual product may vary.
