Li-ion Single-Cell Charger/Protection Circuit
A reliable solution for charging and protecting Li-ion batteries
- Overcharge protection: Yes
- Over-discharge protection: Yes
- Short circuit protection: Yes
- Overcurrent protection: Yes
Specifications:
- Overcharge detection voltage: 4.25 + 0.05V
- Overcharge release voltage: 4.23 + 0.05V
- Discharge detection voltage: 2.45 + 0.1V
- Ceiling continuous current: 12A
- Overcurrent detection current: 7.5A
- Input Charging voltage: 3.7V
Top Features:
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Overcurrent protection
Nowadays, Li-ion batteries are the most popular choice for indoor and outdoor gadgets due to their high charge storage capacity. These batteries are compact, efficient, and have a high energy intensity compared to other types of batteries. However, one drawback is the need for continuous monitoring of the charging and discharging process to maintain battery life and charge storing capacity.
This Li-ion single-cell charger/protection circuit is designed to address these issues. It can charge a single cell of 15 Amp capacity or 2500mAh parallel-connected 5 to 6 Li-ion cells. The circuit utilizes MOSFET for monitoring tasks, providing protection against overcharge, over-discharge, and short circuits.
Wiring Instructions:
- B+: Battery positive
- B-: Battery negative
- P+: Outputs positive input for the battery pack
- P-: Outputs negative electrode for the battery pack

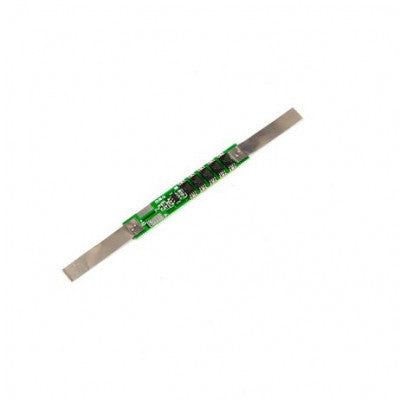

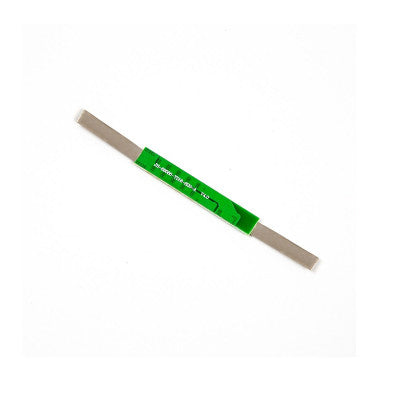

Package Includes: 1 x 1S 18650 3.7V lithium battery protection plate with 5 MOS.
Images are for illustration only; actual product may vary.
