1N914 High-Speed Switching Diode
High-speed switching diode with a max. 4 ns switching speed and 75 V continuous reverse voltage.
- Peak Repetitive Reverse Voltage: 75 V
- Working Peak Reverse Voltage: 75 V
- DC Blocking Voltage: 75 V
- Non-Repetitive Peak Reverse Voltage: 100 V
- RMS Reverse Voltage: 53 V
- Average Rectified Output Current: 75 mA
- Non-Repetitive Peak Forward Surge Current: 1 A
- Operating Junction Temperature Range: -65 to +175 °C
- Storage Temperature Range: -65 to +175 °C
- Package/Unit: Hermetically sealed leaded glass SOD27 (DO-35)
Top Features:
- High switching speed: max. 4 ns
- Continuous reverse voltage: max. 75 V
- Repetitive peak reverse voltage: max. 100 V
- Repetitive peak forward current: max. 225 mA
The 1N914 is a high-speed switching diode fabricated in planar technology and encapsulated in a hermetically sealed leaded glass SOD27 (DO-35) package. It offers fast switching speed, high reliability, and conductance, making it suitable for general-purpose switching applications.
Mechanical Characteristics:
- Case: DO-35, Glass
- Terminals: Solderable per MIL-STD-202, Method 208
- Marking: Type Number
- Weight: 0.013 grams (approx.)
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.

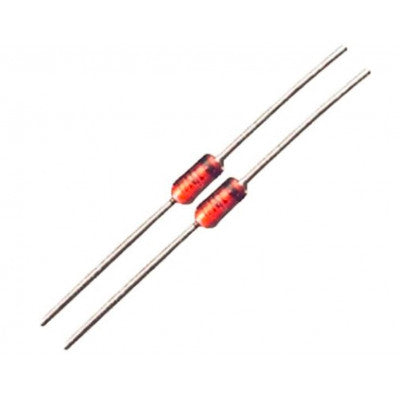

Images are for illustration only; actual product may vary.
