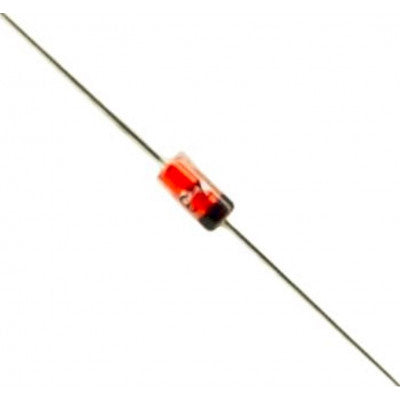

1N60 Germanium Diode
A point contact diode ideal for TV image detection, FM detection, and more.
- Symbol Parameter: Value
- VRRM Peak Repetitive Reverse Voltage: 40 V
- VRM Peak Reverse Voltage: 45 V
- VR DC Blocking Voltage: 20 V
- IO Average Rectified Output Current: 50 A
- IFSM Non-Repetitive Peak Forward Surge Current: 150 mA
- TJ Operating Junction Temperature Range: -65 to +125 °C
- Tstg Storage Temperature Range: -65 to +125 °C
Features:
- Metal silicon junction, majority carrier conduction
- High current capability, low forward voltage drop
- Extremely low reverse current lR
- Ultra speed switching characteristics
The 1N60 Germanium Diode is designed for optimal linearity in various applications such as TV image detection, FM detection, AM detection, etc. It features a Germanium Glass Diode construction and is RoHS compliant.
With satisfactory wave detection efficiency, this diode is suitable for use in recorders, TVs, radios, telephones as detectors, super high-speed switching circuits, and small current rectifiers.
Mechanical Characteristics:
- Case: DO-7, molded glass
- Weight: 0.2 gram
- Terminals: Plated axial lead, solderable per MIL-STD-202E, Method 208
- Polarity: Color band denotes cathode end
