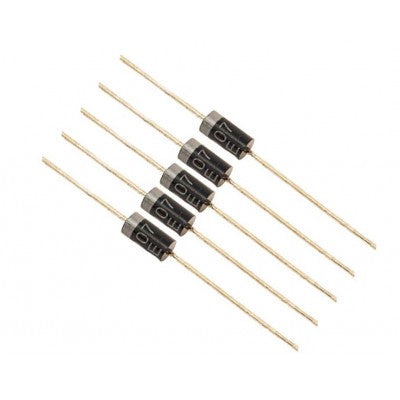

1N4007 Diode
A versatile diode for current flow control in electronic circuits.
- Peak Repetitive Reverse Voltage: 1000V
- Average Rectified Forward Current: 1A
- Rating for Fusing: 30A
- Non-Repetitive Peak Forward Surge Current: 3.7 A2sec
- Operating Junction Temperature: 55 to +175 °C
- Storage Temperature Range: 55 to +175 °C
Top Features:
- 1A Average Forward Current
- 30A Non-repetitive Peak Current
- 5uA Reverse Current
- 3W Power Dissipation
The IN4007 diode is a device that allows current flow in only one direction, from the Anode to the cathode. With a maximum current carrying capacity of 1A and the ability to withstand peaks up to 30A, it is suitable for circuits designed for less than 1A. The reverse current of 5uA is negligible, and the power dissipation is 3W.
It is available in a DO-41 package and offers high surge current capability, low forward voltage drop, diffused junction, surge overload rating to 30A peak, low reverse leakage current, and low leakage current. The diode is compliant with RoHS Directive 2002/95/EC and WEEE 2002/96/EC.
Mechanical Data:
- Case: DO-41
- Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020D
- Terminals: Finish - Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208
- Polarity: Cathode Band
- Marking: Type Number
- Weight: 0.30 grams (Approximate)
Application:
- Can be used to prevent reverse polarity problems
- Half Wave and Full Wave rectifiers
- Used as a protection device
- Current flow regulators
