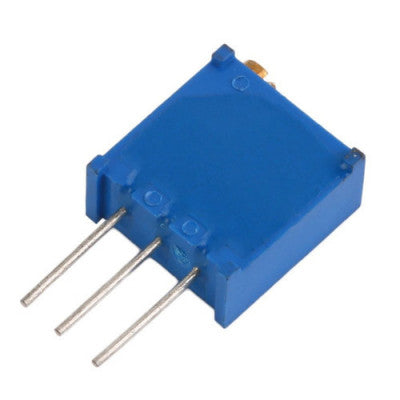

Trimpot
High accuracy variable resistor for PCB mounting
- Track Resistance: 1M ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 1M ohm
- Resistor Element Material: Variable Rotary Trimmer
Top Features:
- High accuracy
- Variable voltage output
- 3 terminal pins
- Rotary cermet for adjustment
The Trimpot is a high accuracy variable resistor designed for PCB mounting. It has a track resistance of 1M ohm with a resistance tolerance of ± 5%. The temperature coefficient is ± 50ppm/°C, making it suitable for a wide range of operating temperatures from -55°C to +125°C.
With the outer two pins connected to Vcc and 0V, the center pin outputs a variable voltage between 0V and Vcc as the rotary cermet is rotated. This feature allows for easy variation of voltage as needed in a circuit.
The Trimpot's adjustment type is top, and it has a lead diameter of 0.5mm. The resistor element material is a variable rotary trimmer, ensuring reliable performance.
For more details or bulk pricing, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
