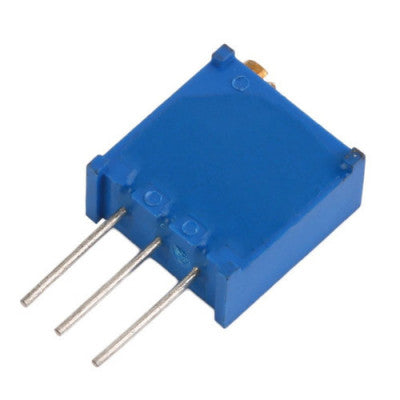

Trimpot: High Accuracy Variable Resistor
A high accuracy variable resistor with 3 terminal pins for precise circuit adjustments.
- Track Resistance: 1K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 1K ohm
- Resistor Element Material: Variable Rotary Trimmer
- Pack/Unit Details: 1 piece
Top Features:
- High accuracy
- Three terminal pins
- Precise voltage variation
- Rotary cermet adjustment
The Trimpot is a variable resistor that can be mounted on a PCB with 3 terminal pins. It allows the voltage between the terminals to vary as it is rotated. This component is essential for adjusting the voltage in a circuit accurately.
The outer two pins are connected to Vcc and 0V, while the center pin outputs a variable voltage between 0V and Vcc depending on the position of the rotary cermet.
With a track resistance of 1K ohm and a resistance tolerance of ±5%, this trimpot provides precise adjustments. The temperature coefficient of ±50ppm/°C ensures stable performance across temperature variations.
Operating in a temperature range from -55°C to +125°C, this variable resistor is reliable in various environmental conditions. It has a top adjustment type and a contact resistance variation of 1% for consistent output.
*Images are for illustration only; actual product may vary.*
