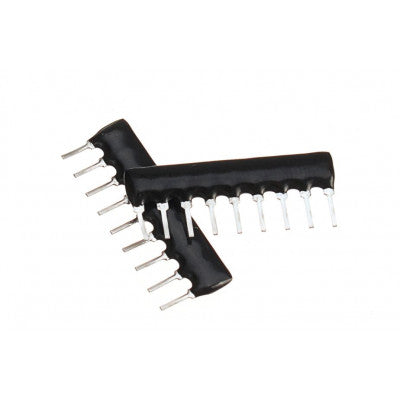

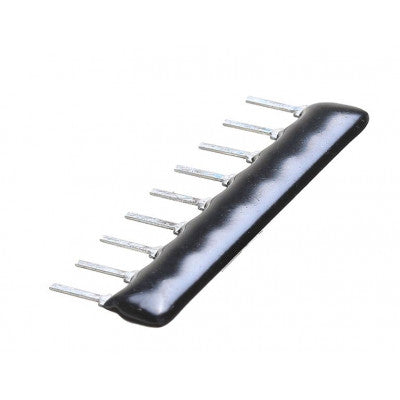

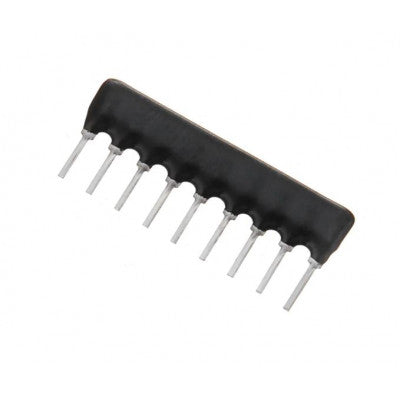

1K Ohm 9 Pin Resistor Network - SIP
A passive nine-terminal electrical component with eight 1K ohms resistances and one common ground.
- Resistance: 1K Ohms
- Tolerance: ±5%
- Maximum Working Voltage: 100(V)
- Maximum Overload Voltage: 150(V)
- Mounting Type: Through Hole
- Power Rating: 1/2 Watt
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Color: Black
- Pins: 9
- Resistors: 8
Top Features:
- 1K Ohm Resistance
- Through Hole Mounting
- 1/2 Watt Power Rating
- Black Color
The resistor array is designed to provide eight 1K ohms resistances and one common ground. It has a maximum working voltage of 100V and a tolerance of ±5%. With a power rating of 1/2 Watt, this resistor network is suitable for various electronic applications.
Operating within a temperature range of -55°C to 155°C, this SIP resistor network offers reliable performance. The through-hole mounting type ensures easy installation on circuit boards. Ideal for projects requiring multiple resistors in a compact design.
- Package Includes: 1 x 1K ohm 9 Pin Resistor Network - SIP
*Images are for illustration only; actual product may vary.
