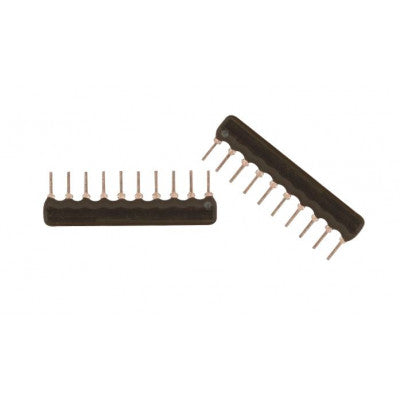

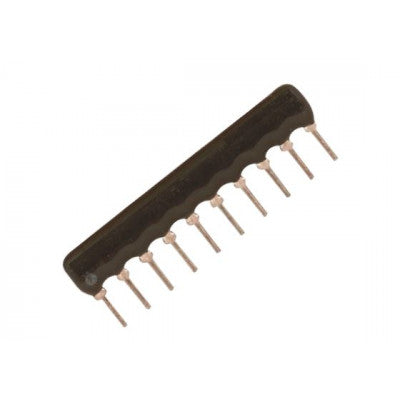

1K Ohm Through Hole Resistor Network
A passive nine-terminal electrical component with nine 1K ohms resistances and one common ground.
- Resistance: 1K Ohms
- Tolerance: ±5%
- Maximum Working Voltage: 100(V)
- Maximum Overload Voltage: 150(V)
- Mounting Type: Through Hole
- Power Rating: 1/2 Watt
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Color: Black
- Pins: 10
- Resistors: 9
Top Features:
- 1K Ohm Resistance
- 9 Resistors in One
- Through Hole Mounting
- 1/2 Watt Power Rating
The resistor array is designed to provide nine 1K ohms resistances and one common ground. It has a tolerance of ±5% and can withstand a maximum working voltage of 100V and an overload voltage of 150V. With a power rating of 1/2 Watt, this resistor network is suitable for a wide range of applications. The through-hole mounting type ensures easy installation and secure connection.
Operating within a temperature range of -55°C to 155°C, this resistor network offers reliable performance in various environmental conditions. The black color and 10-pin design make it easy to identify and integrate into your circuit. Whether you are working on a DIY electronics project or professional application, this 1K ohm resistor network provides the precision and stability you need.
- Package Includes: 1 x 1K ohm 10 Pin Resistor Network - SIP
*Images are for illustration only; actual product may vary.
