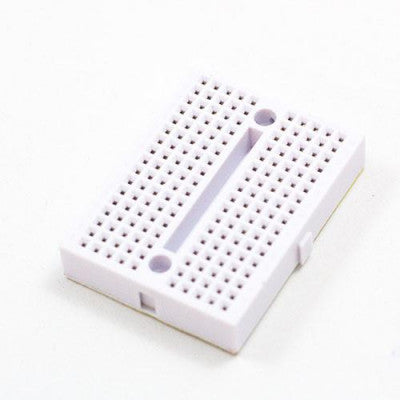

SYB-170 Mini Solderless Breadboard
A versatile breadboard with 170 tie points for prototyping and testing circuits.
- Tie-Points: 170
- Material: ABS
- Mounting Holes: M2
- Length (mm): 48
- Width (mm): 35
- Height (mm): 9
- Weight (gm): 14
Top Features:
- Experimental and testing use
- Accepts 20-29 AWG wire sizes

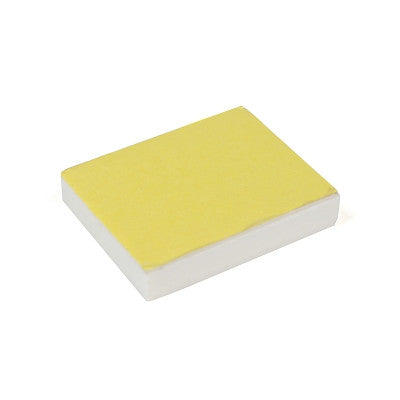

- Adhesive-backed for permanent mounting
- Phosphor bronze nickel plated spring clips

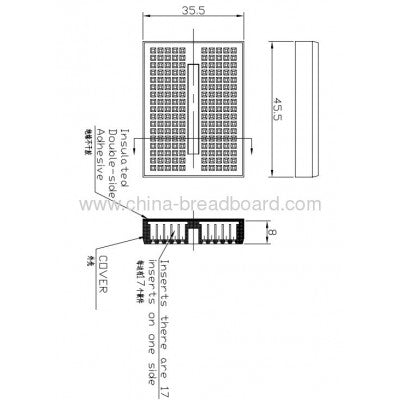

The SYB-170 Mini Solderless Breadboard is a versatile tool with 170 tie points, ideal for prototyping, testing, and creating add-on modules or new circuits. It features 17 columns of 10 holes, labeled 1 to 17, with each column also marked with a letter from A to J for easy reference. The breadboard comes with peel and stick adhesive backing and two mounting holes for M2 screws for secure anchoring.
Made from sturdy ABS plastic housing, this solderless breadboard ensures longevity and a firm grip with its standard nickel-plated spring clips. It is compatible with LEDs, transistors, diodes, capacitors, and resistors, making it a versatile option for various projects. If you need more space, you can pair the SYB-170 with additional breadboards like the PTBB-400W to accommodate larger circuits.
The package includes 1 x 170 Points Mini Breadboard SYB-170 in White.
*Images are for illustration only; actual product may vary.
