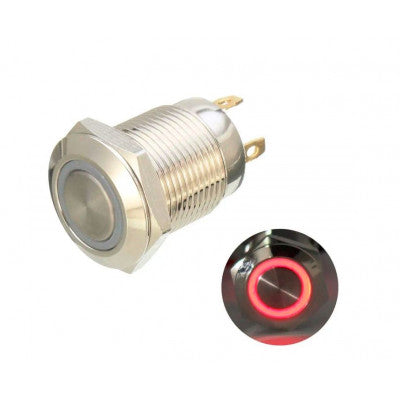

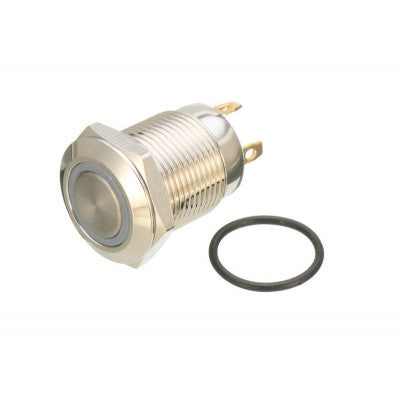

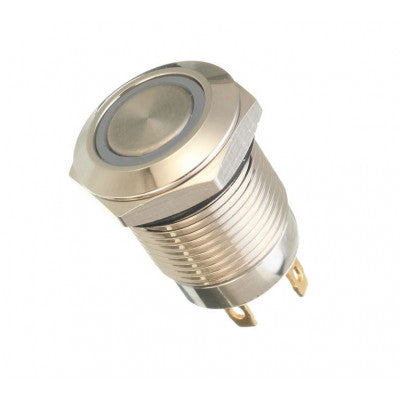

16mm 12V Ring (Red Light) Self-Lock Non-Momentary Metal Push-button Switch
A heavy-duty push-button switch with an illuminated Red LED ring for premium look
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 2A MAX
- Light Color: RED
- On/Off Function: Push to ON and Push to OFF
- Switch Type: ILLUMINATED Latching Metal Push button Switch

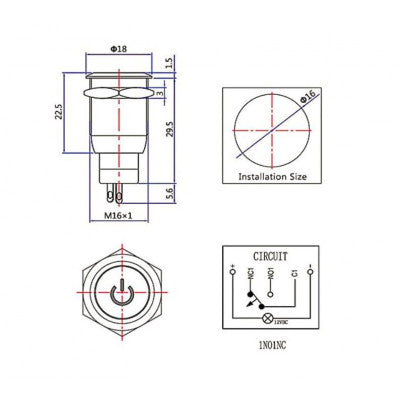

- Mounting Hole Diameter (mm): 16 mm
- Contact Type: Solder Type
- Contact Material: Silver Alloy
- Contact Resistance: 50 M
- Insulation Resistance (M): 1000
- Operating Temperature Range (C): -20 to 55
- Operation Force: About 3-5N
- Operation Stroke: 2-5mm
- Body Material: Stainless Steel and Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP66
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch
- Inbuilt Colorful Ring illumination LED

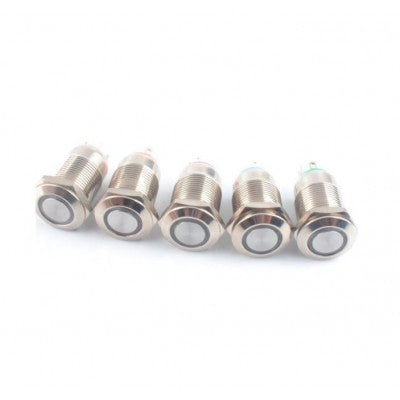

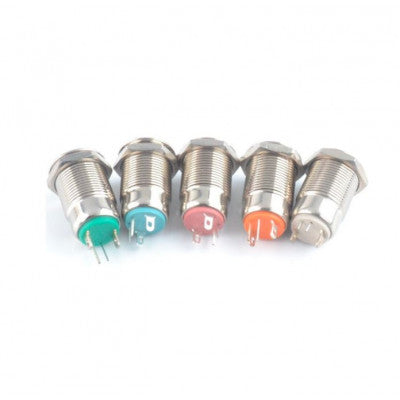

- Available in Various LED Color
This Self-lock Non-Momentary Metal Push button Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red LED ring. It is an SPDT with 16mm threading and 1mm pitch. It gives a premium look to your dashboard or control panel with an LED light ring around the push area of the switch. These switches are available in various LED light Colors, you can choose for your application purpose.
This switch comes with Non-Momentary Self-Lock action which means it holds its physical position with ON/OFF state until you press it again. A threaded head and a nut, which makes it perfect to be mounted and installed which encloses in your project cases showing flat hexagonal ring structure outside. With glowing, your desired colorful light ring itself in the switch gives an attractive design and premium look which compliments quality panels and dashboards.
The switch comes Stainless steel body with an IP67 protection rating to provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. Overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC while the LED is rated for 5V.
Package Includes:
- 1 x 16mm 12V Ring (Red Light) Self-Lock Non-Momentary Metal Push-button Switch
*Images are for illustration only; actual product may vary.
