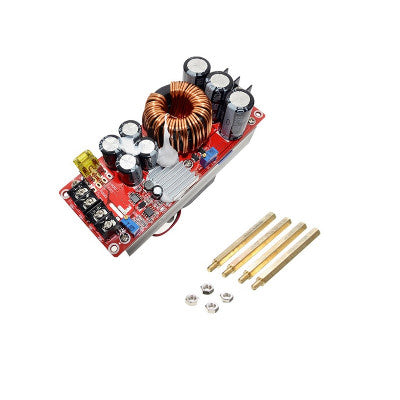

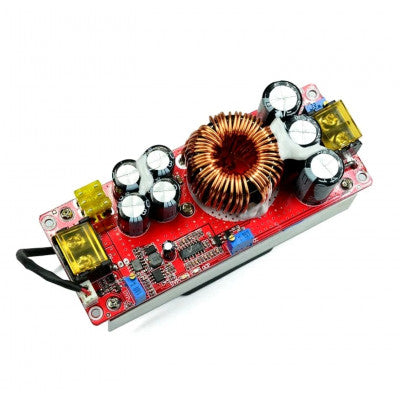

1500W DC-DC 12-48V to 24-72V Boost Step Up Converter Module
High-power non-isolated DC power converter for various applications
- Module model: SZ-BT07CCCV-D1
- Input voltage: DC10-60V
- Input current: 10-30V input voltage, max 30A; 31-60V input voltage, max 25A
- Static working current: 15mA
- Output voltage: 12-90V continuously adjustable (default output: 19V)
- Working temperature: -40~+85 degrees
- Output power: Input voltage * 30A (e.g., 12V * 30A = 360W)
Top Features:
- High conversion efficiency up to 97%

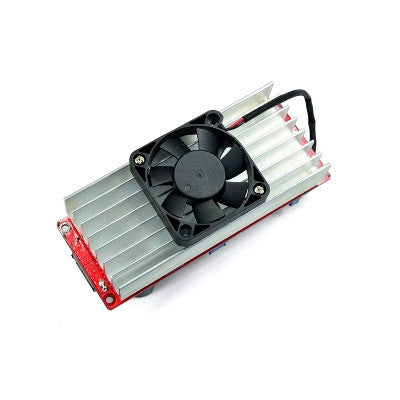

- Smart temperature control fan
- Widely used for various applications
This high-power DC power converter module efficiently converts 10-60VDC to 12-97V DC. It is equipped with high-quality components ensuring stability and efficiency. The smart temperature control fan activates at 60% temperature and deactivates below 60%.
It finds applications in high-power solar street lamp driving, LED lighting CV driving, vehicle-mounted power supply, DIY adjustable power supply, solar power charging, and battery charging.
Applications:
- Charge for electric bikes
- Car power supply for laptops, PDAs, and digital products
- Solar panel boost regulator
Images are for illustration only; actual product may vary.
