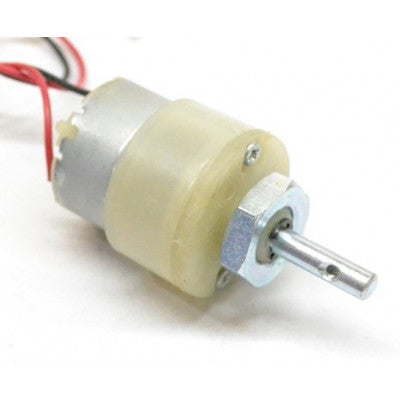

DC Motor – 150RPM – 12Volts
Perfect for all-terrain robots and various robotic applications.
- RPM: 150
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur)Gearbox
- Shaft diameter: 6mm with internal hole
- Torque: 2 kg-cm
- No-load current: 60 mA (Max)
- Load current: 300 mA (Max)
Top Features:
- Simple to connect with 3mm threaded drill hole
- Robust metal gearbox for heavy-duty applications
- Wide RPM range ideal for robotics and industrial use
- Easy to use and standard size
Geared motors are generally a simple DC motor with a gearbox attached, perfect for all-terrain robots and various robotic applications. The 150 RPM 12V DC geared motors are widely used in robotics applications. They feature a 3mm threaded drill hole in the middle of the shaft, making it easy to connect to wheels or other mechanical assemblies.
The motors can be controlled with an Arduino or compatible board without spending a lot of money. The popular L298N H-bridge module with onboard voltage regulator motor driver is compatible with this motor, operating at a voltage between 5 and 35V DC. Alternatively, you can choose a more precise motor driver module from our wide range available in the Motor drivers category to meet your specific requirements.
The motor comes with nut and threads on the shaft for easy connection and an internally threaded shaft for connecting to wheels. The DC geared motors with a robust metal gearbox are designed for heavy-duty applications and are available in a wide RPM range, making them ideally suited for robotics and industrial applications.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
