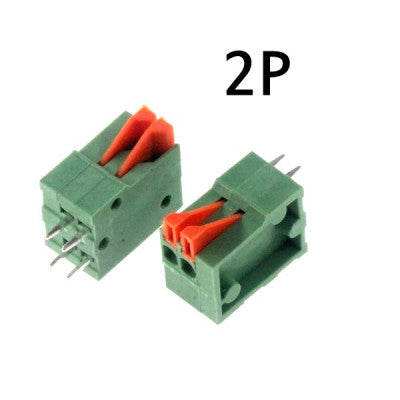

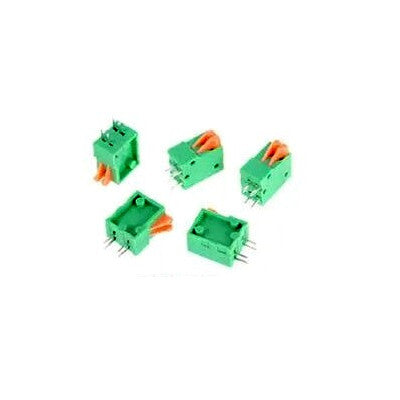

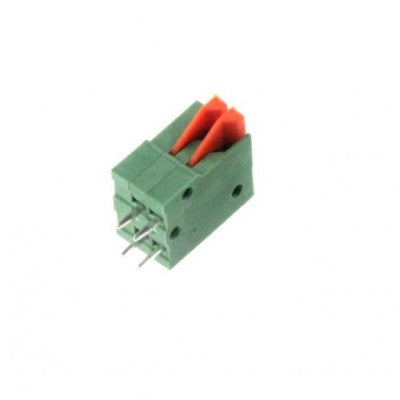

141V 2.54mm Pitch PCB Straight Foot Connectors Terminal Block
High-quality terminal block for PCB connections
- Model: 2P 141V
- Pitch: 2.54 mm
- Wire Connection Method: Push-In
- Poles: 1
- PCB Mounting Method: Through Hole
-
Wire Size:
- AWG Max: 20 AWG
- AWG Min: 26 AWG
- mm2 Max: 0.5 mm
- mm2 Min: 0.14 mm
Top Features:
- Stainless steel shrapnel
- Brass pin header, Tin plated
- PA66 Housing, UL94V-0
- Rated voltage: 150V
This 141V 2.54mm Pitch PCB Straight Foot Connectors Terminal Block is designed with high-quality materials including stainless steel shrapnel, brass pin header with tin plating, and PA66 housing with UL94V-0 rating. It has a rated voltage of 150V and a rated current of 2A. The terminal block supports wire ranges from 26 to 18AWG (1.0mm) with excellent electrical properties such as low contact resistance and high insulation resistance. It can withstand temperatures from -40°C to +105°C and is suitable for soldering at 250°C ± 5°C for 5 seconds.
- Rated voltage: 150V
- Rated current: 2A
- Wire range: 26~18AWG 1.0mm
- Contact Resistance: 20 m?
- Insulation resistance: 500M?/DC500V
- Withstand voltage: AC1300V / 1 min
- Temp. Range: -40°C ~ +105°C
- Soldering: 250°C ± 5°C for 5S
- Package Includes: 1 x 141V 2.54mm Pitch PCB Straight Foot Connectors Terminal Block
Operating Temperature Range: -40°C to 105°C
