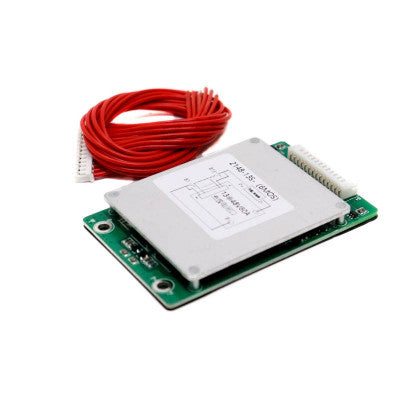

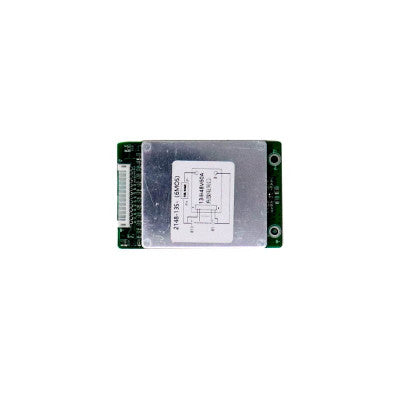

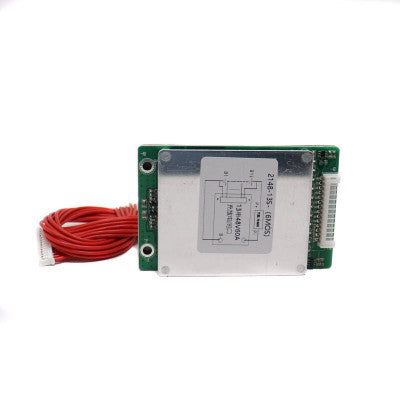

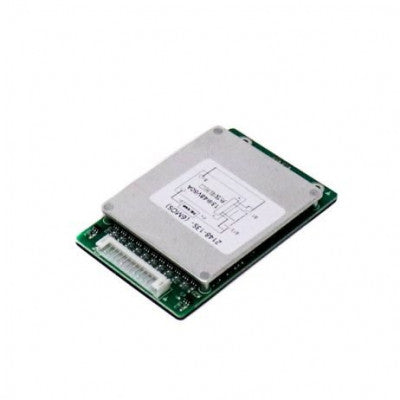

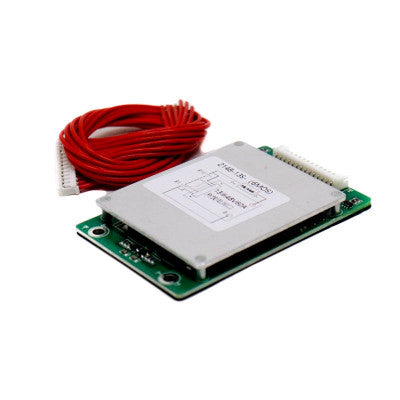

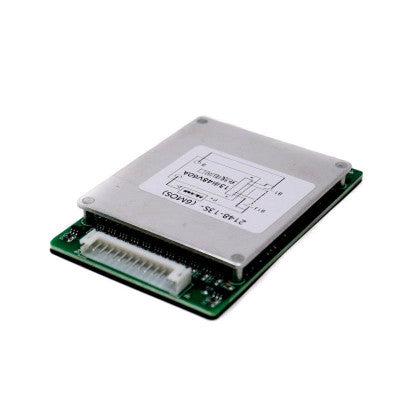

13S 48V 60A Li-ion Battery Protection Board
Protect your battery with precision and efficiency
- Continuous Discharging Current: 60A
- Charging Voltage: 54.6V
- Maximum Over-current Protection: 170 A
- Balance Voltage with single-cell: 4.2 V
- Overcharge detection voltage: 4.25 V
- Working Temperature: -20~80°C
- Storage Temperature: -20~80°C
- Length(mm): 74
- Width(mm): 55
- Weight(g): 45
Features:
- Serial connection protection for 13S cells
- Extremely low quiescent power consumption
- Stable and full protection functions
- Balance technology for optimal battery pack performance
The 13S 48V 60A Li-ion Battery Protection Board is designed for overcharge protection, over-discharge protection, short circuit protection, and over current protection. It features serial connection protection for 13S cells, allowing for lower voltage use by changing wire connection ways. With stable and full protection functions, including precise over-charge protection, over-discharge protection, over-current protection, and short-circuit protection, this protection board ensures the safety and longevity of your battery packs.
Utilizing balance technology, this protection board maintains current stability and heating distribution to prevent any adverse effects on battery performance. The heating sink technology efficiently vents temperature to protect against over-heating issues with the MOSFET, extending the MOSFET's lifespan significantly.
Package Includes:
- 1 X 13s 48V 60A Battery Protection Board with connector
- 1 X Cable Wire
* Images are for illustration only; actual product may vary.
