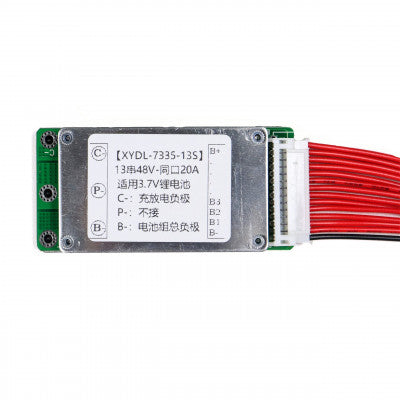

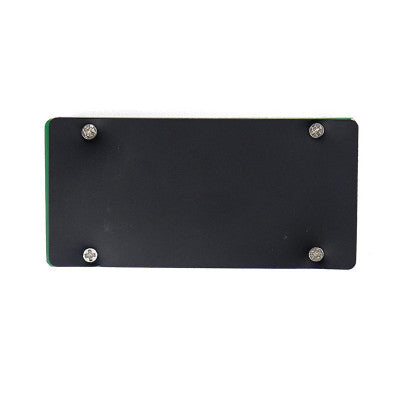

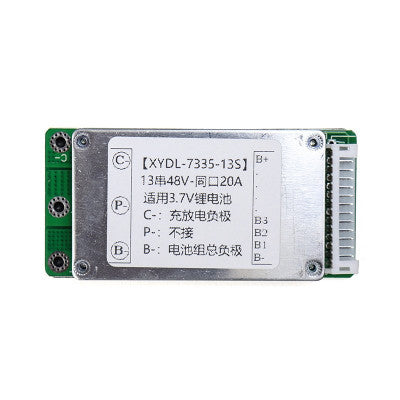

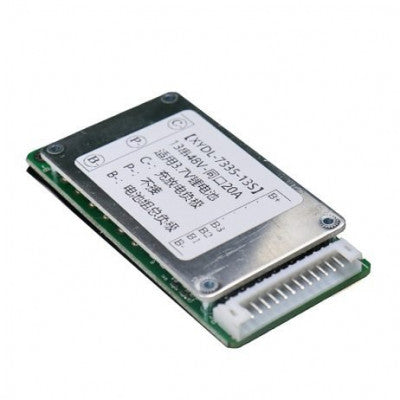

13S 48V 20A Li-ion Battery Protection Board
Protect your Li-ion battery with overcharge, over-discharge, short circuit, and over current protection.
- Continuous Discharging Current: 20A
- Instantaneous Discharge Current: 100A
- Charging Voltage: 54.6V
- Charging Current: 20A (Max.)
- Over-charge Detect: 4.28±0.05V
Features:
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Over current protection
The 13S 48V 20A Li-ion Battery Protection Board is designed with a Continuous Discharging Current of 20A and an Instantaneous Discharge Current of 100A. It operates within a Working Temperature range of -30~80°C and has a Charging Voltage of 54.6V. The Charging Current can reach up to 20A (Max.) with an Over-charge Detect level of 4.28±0.05V.
Package Includes:

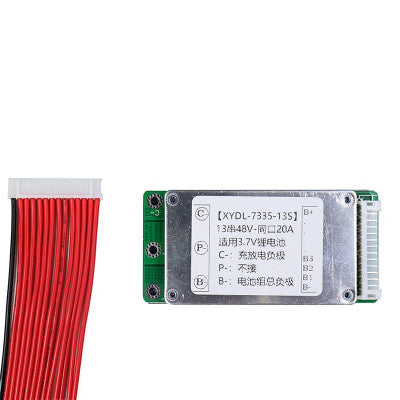

- 1 X 13S 48V 20A Li-ion Battery Protection Board
- 1 X Cable Wire
Specifications:
- Continuous Discharging Current: 20A
- Instantaneous Discharge Current: 100A
- Charging Voltage: 54.6V
- Charging Current: 20A (Max.)
- Over-charge Detect: 4.28±0.05V
- Protect Delay: 100ms
- Over-charge Release: 4.08±0.05V
- Over-discharge: 2.55±0.08V
- Over-discharge Detect Delay: 50mS
- Release Voltage: 2.9±0.1V
- Detect Voltage: 150mV
- Detect Delay: 15mS
- Current Detect: 120±5A
- Resistance: ?15m?
*Images are for illustration only; actual product may vary.
