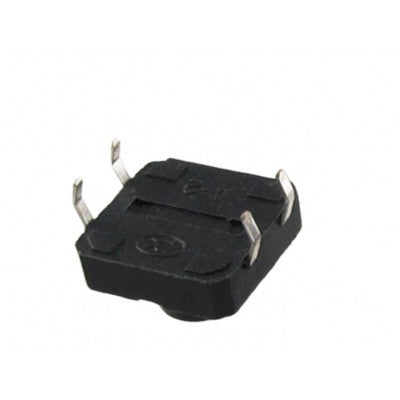

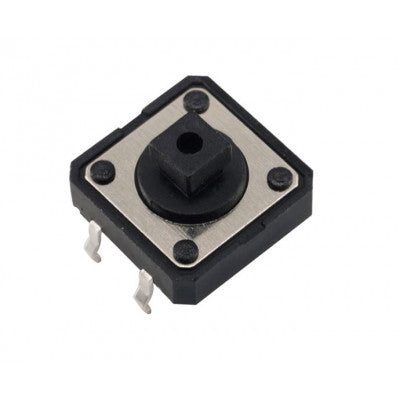

12x12x7.3mm Tactile Push Button Switch
Widely used standard input buttons for electronic projects
- Operating Current: 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Mounting Type: Through-hole
- Contact Material: Aluminium alloy
- Contact Resistance: 50m?
- Insulation Resistance: 100M?
- Operating Temperature Range: -20°C to +70°C
- Operation Force: 2.55N
- Operation Stroke: 1.05mm
- Body Material: Plastic
- Mech. & Electrical Life: 300,000 Cycles
- Protection Grade: IP65
- Length (mm): 12
- Width (mm): 12
- Height (mm): 7.3
- Weight (gm): 2.5 (approx) (each)
Features:
- Through-hole design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Middle stroke (1.05mm)
This tactile switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
They come in a pack of 5, making them handy to have around for various projects.
Images are for illustration only; actual product may vary.
