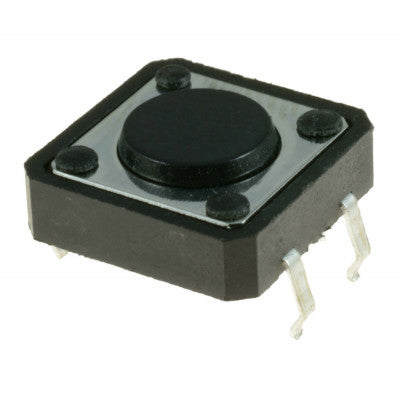

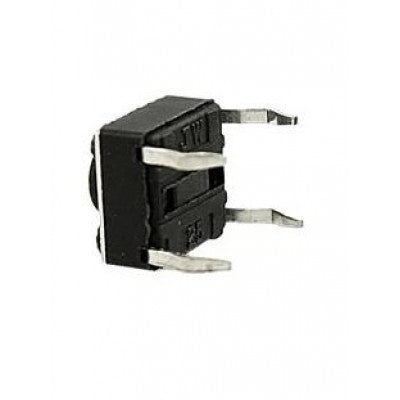

12x12x5mm Tactile 4 Pin Push Button Switch
Widely used standard input buttons for electronic projects
- Operating Voltage: 12 V DC
- Operating Current: 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Mounting Type: Through-hole
- Contact Material: Aluminium alloy
- Contact Resistance: 50m?
- Insulation Resistance: 100M?
- Operating Temperature Range: -20°C to +70°C
- Operation Force: About 3-5N
- Operation Stroke: 1.05mm
- Body Material: Plastic
- Mech. & Electrical Life: 300,000 Cycles
- Protection Grade: IP65
- Length (mm): 12
- Width (mm): 12
- Height (mm): 5
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Middle stroke (1.05mm)
This tactile switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
They come in a pack of 5, as they’re pretty handy so you’ll want to keep them around.
Used in the fields of electronic products, household appliances, and more. The high precision mechanism design offers acute operation and long service life. Compact and lightweight, easy to carry and dismantle. Good electrical conductivity.
* Images are for illustration only; actual product may vary.
