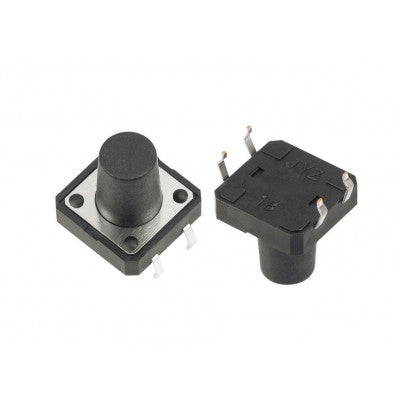

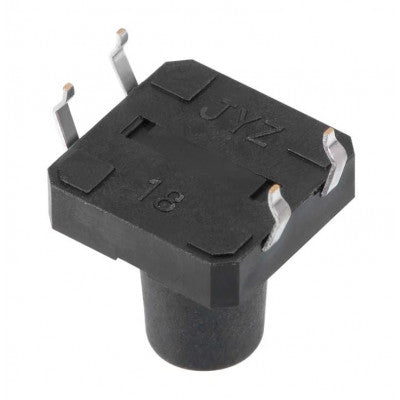

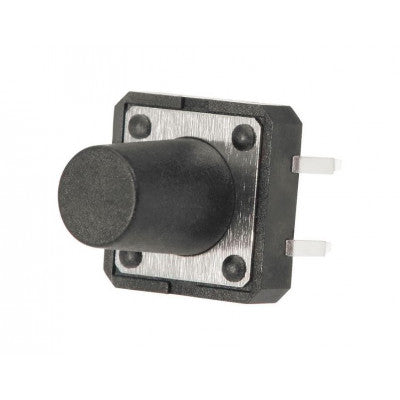

12x12x12mm Tactile 4 Pin Push Button Switch
Reliable tactile switch with dome contact technology for various applications.
- Operating Voltage: 12 V DC
- Operating Current: 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Mounting Type: Through-hole
- Contact Material: Aluminium alloy
- Contact Resistance: 50m?
- Insulation Resistance: 100M?
- Operating Temperature Range: -20°C to +70°C
- Operation Force: About 3-5N
- Operation Stroke: 1.05mm
- Body Material: Plastic
- Mech. & Electrical Life: 300,000 Cycles
- Protection Grade: IP65
- Length (mm): 12
- Width (mm): 12
- Height (mm): 12
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Compact and lightweight
Widely used as a standard input “buttons” on electronic projects. Best mounted on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. Pins are normally open and close the circuit when pressed. Offers reliable dome contact technology and strong tactile feedback with multiple operating forces. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
Comes in a pack of 5 for convenience.
* Images are for illustration only; actual product may vary.
