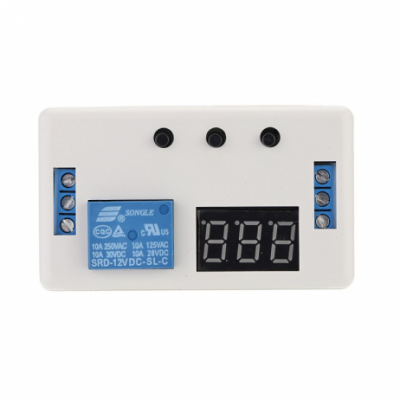

Relay Module with Automatic Delay Timer
A versatile module with a 12V relay and a three-digit seven-segment display.
- Timing Range: 0.1~99.9 seconds, 1~999 seconds, 1~999 minutes
- Operating Voltage (VDC): 12
- Signal Voltage: 4-20VDC
- Output Capacity: Can Control the Load within DC 30V 5A or AC 220V 5A
- Static Current: 20mA
- Working Current: 50mA
- Operating Temperature (C): -40 to 85
- Length (mm): 68
Top Features:
- Power supply anti-reverse function
- Opto isolated input and output for enhanced anti-jamming capability
- Memorizes last setting parameters after power off
- Signal terminal voltage can be maintained for a long time

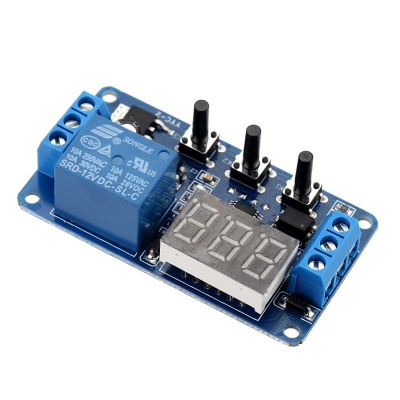

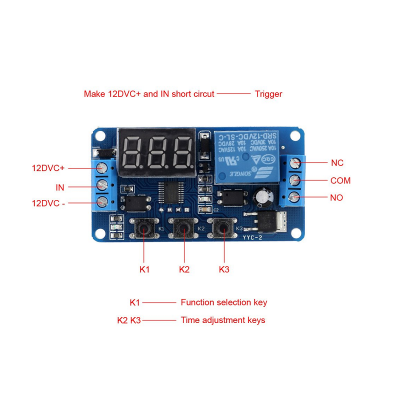

The relay module with automatic delay timer is based on an N76E003AT20 microcontroller and includes three buttons for function control and delay time setting.
Package Includes: 1 x 12V Relay Module with Automatic Delay Timer
* Images are for illustration only; actual product may vary.
