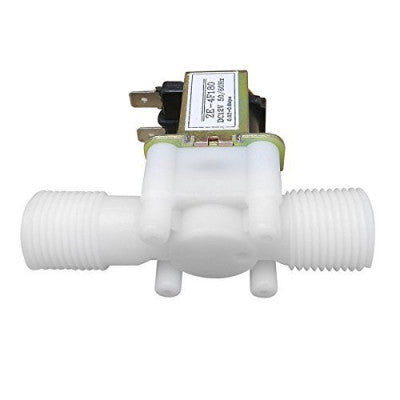

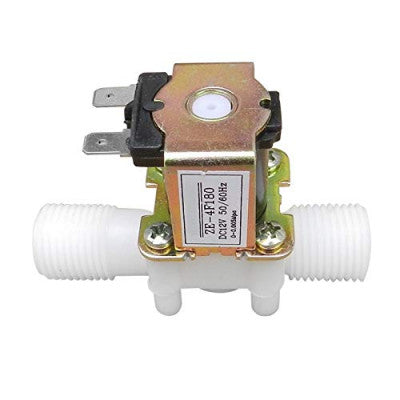

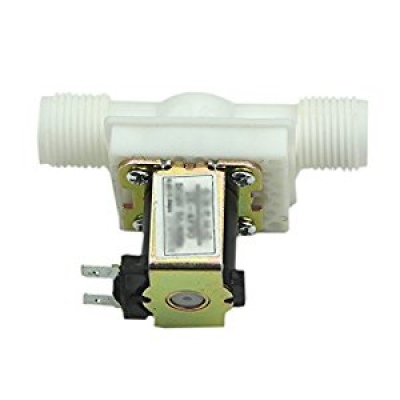

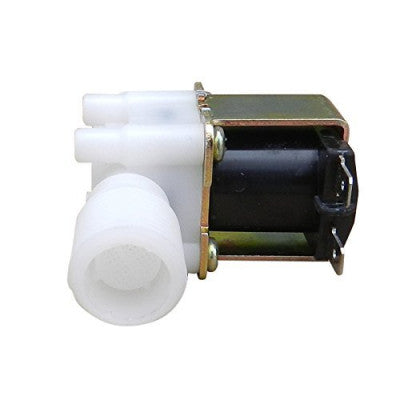

12V DC Solenoid Water Air Valve Switch (Normally Closed) 1/2
Control the flow of fluid with this compact and reliable solenoid valve.
- Model: 12V DC 1/2" Solenoid Valve
- Rated Operating Voltage (VDC): 12
- Rated Current (mA): 600
- Operation Mode: Normally Closed
- Power Consumption (Watt): 8
- Pressure: 0.02-0.8Mpa
- Energized forms: Intermittent
- Inlet and outlet Diameter: Hose barbs for 1/2" (outer diameter) hose
- Dimensions (mm): LxWxH Body: 84 x 57mm (L x H), Coil size: 34 x 23mm (W x H)
- Weight (gm): 100
- Max fluid temperature: 100C
Features:
- Compact and convenient
- Easily installed and serviced
- Precise and reliable
- Arbitrary installation direction
The 12V DC Solenoid Water Air Valve Switch (Normally Closed) 1/2 controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid. This liquid valve would make a great addition to your robotic gardening project. There are two (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens, and water can push through. The valve works with the solenoid coil, which operates electronically with a DC 12-volt supply. As it is a normally closed assembly, it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage is removed.
Note: While Connecting Valve in Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter; this is the input side of the value). It is not suitable for use with Gravity fed systems.
Package Includes: 1 x 12V Solenoid Water Air Valve Switch (Normally Closed) 1/2
*Images are for illustration only; actual product may vary.*
