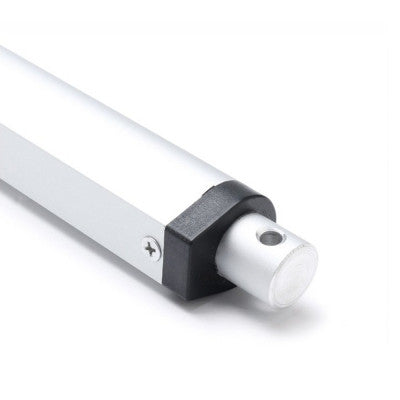

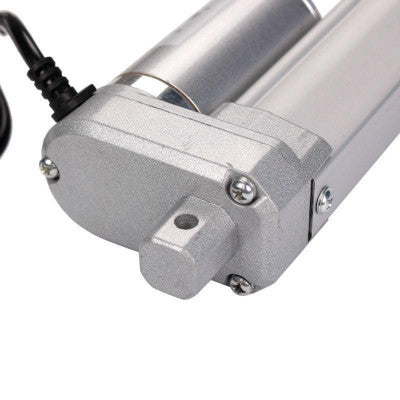

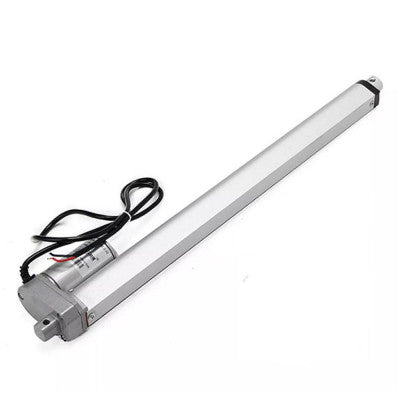

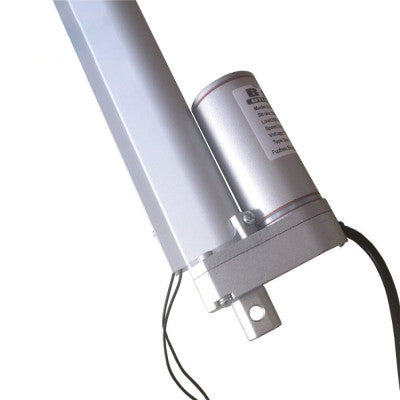

Miniature Linear Actuator Stroke Length 500MM, 7mm/S, 1500N, 12V
An electric push rod ideal for various industrial applications
- Stroke Length: 500mm (20 inches)
- Permanent magnet DC motor drive: Voltage 12VDC
- Operating Temperature Range (C): -20 to 63
- Mounting hole diameter (both ends): 1/4 (6.4mm)
- Protection Level: IP55
- Maximum current draw: 2A
- Maximum static load: 337.2 lbs. (1500 Newtons)
- Self Locking Force: 1500N
- Motor Diameter: 36 mm
- Speed at no load: 0.28in/sec (7 mm/sec)
- Speed at full load: 0.22in/sec (5.5 mm/sec)
- Noise level: 45 dB
- Weight (gm): 1476
- Length (mm): 620
- Width (mm): 77
- Height (mm): 37
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
This Miniature Linear Actuator Stroke Length 500MM, 7mm/S, 1500N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo, and many other applications. This electric push rod is a kind of electric driving device that transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control, or automatic control. The electric push rod is composed of a drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro motion control switch, etc.
Note: The actual product may vary in terms of color and markings. The following conditions can cause serious damage to the product: 1. Direct connect with AC power 2. Use in the above standard voltage environment 3. Push/Pull exceed the maximum value of the product show 4. The stroke did not finish, still with power, forced to cease.
The following conditions may shorten the product life: 1. High-frequency operation 2. High temperature
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras, and more.
Package Includes:
- 1 x Linear Actuator Stroke Length 500MM, 7mm/S, 1500N, 12V
*Images are for illustration only; actual product may vary.
