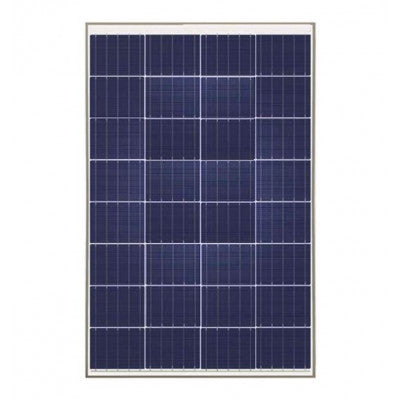

12V 40W Polycrystalline Solar Panel
High-efficiency solar panel with durable aluminum frame and excellent performance.
- Nominal Maximum Power: 40W
- Open Circuit Voltage: 21.37V
- Short Circuit Current: 2.5A
- Voltage at Maximum Power: 17.18V
- Current at Maximum Power: 40W 12V Solar Panel (52×68 cm)
- Module Efficiency: 11.4%
- Maximum Series Fuse Rating: 10A
- Limiting Reverse Current: 10A
- Mounting Holes Pitches (Y): 260mm
- Mounting Holes Pitches (X): 633mm
- Solar Cells per Module/Arrangement Z: 36 / (9 x 4)
- Solar Cell Type: Polycrystalline Silicon
- Encapsulate: Ethylene Vinyl Acetate
Features:
- Advanced EVA encapsulation for better protection
- Best in Class conversion efficiency
- Anti-reflective coating for more light absorption
- High strength Aluminum frame design for torsion resistance
This 40W 12V Solar Panel is engineered with high-efficiency polycrystalline silicon solar cells. The frame is constructed with extra heavy gauge anodized aluminum. It is the best quality solar panel in the market with excellent performance even in weak sunlight. Durable and anti-eye enough to make a unique processing panel, set convenient enough.
Package Includes: 1 x 12V 40W Polycrystalline Solar Panel
* Images are for illustration only; actual product may vary.
