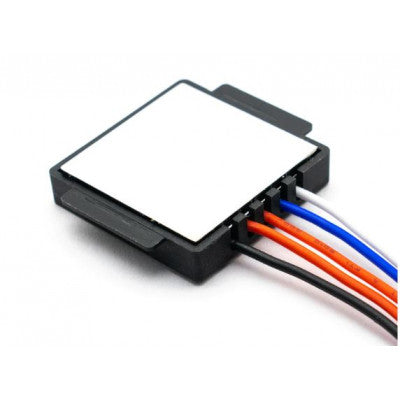

Touch Control Sensor Switch for Mirror Light
Switch control function for LED lights with touch sensor
- Operating Voltage: 12VDC
- Operating Current: 3A
- Model: Long 666
- Dimming Function: YES
- Number of Wires: 5
- Dimension (LxWxH): 33.5mm x 33.5mm x 7.3mm
- Cover Dimension (LxW): 56.8mm x 37.3mm
Top Features:
- LED can be made ON-OFF with a single touch
- Sensitive touch control
- Connects with two LED strips
- Adjustable intensity for both LEDs
The Touch Control Sensor Switch for Mirror Light can be powered by simply supplying 12VDC. It has a switch control function to light up LED lights with a single touch. Specifically designed for smart light mirrors, it controls two mirror lights with a single touch switch. The LED intensity can be adjusted by continuous touch on the switch, allowing for brightness control from dim to bright. The touch switch also features a backlight that changes color from white to blue when the LED is switched on.
INPUT connects to the 12VDC supply, while OUTPUT connects to two LED strips. The positive wire (red-colored) is common for both LED strips, and the negative wires (blue and white-colored) connect to the negatives of the LED strips. The module allows for controlling the brightness of both LED strips and the sequence of LED activation with each touch.
The package includes 1 X 12V 3A Touch Sensor Switch for Mirror Light.
*Images are for illustration only; actual product may vary.
