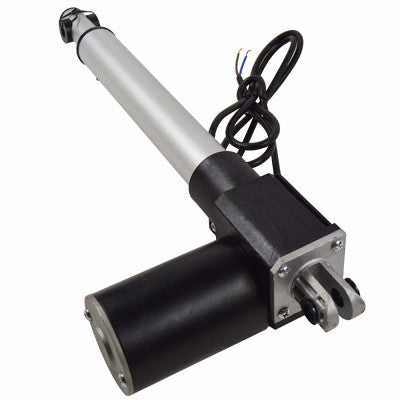

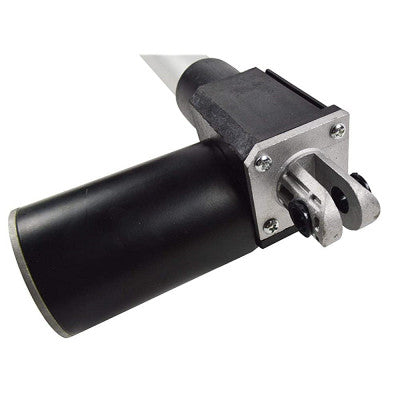

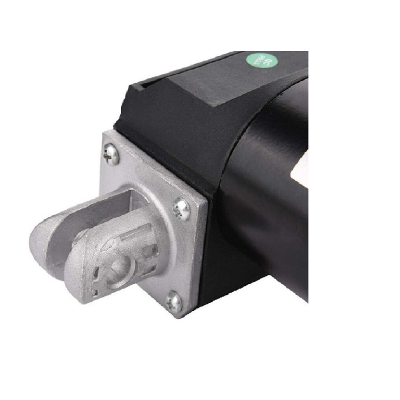

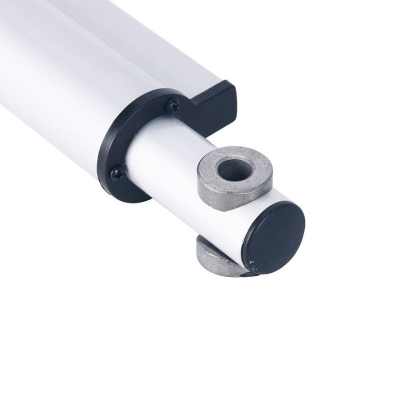

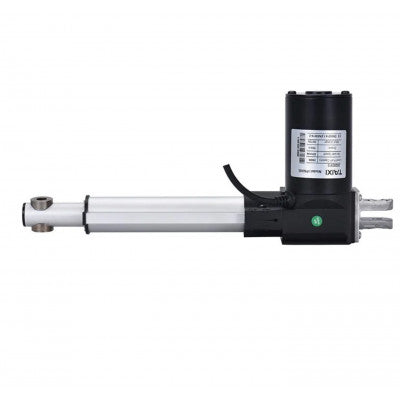

Miniature Linear Actuator Stroke Length 300MM, 5mm/S, 6000N, 12V
An electric push rod ideal for various applications in industrial, agricultural, and construction sectors.
- Stroke Length: 300MM
- Operating Voltage: 12V
- Body Material: Aluminium Alloy
- Operating Temperature Range: -20 to 80°C
- Noise Level: <40 dB
- Cable Length: 50cm
- Mounting Hole Diameter: 10mm
- Motor Diameter: 65mm
- Protection Standard: IP54
- Self Locking Force: 6000N
- Speed at Full Load: 5mm/Sec
- Speed at No Load: 7mm/Sec
- Length: 50cm
- Total Width: 8.5cm
- Height: 14.5cm
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
This electric push rod is a versatile electric driving device that converts motor rotary motion into linear reciprocating motion. It is suitable for various industrial applications and offers reliable performance, sensitive action, and stable running. The high-quality metal material and high-performance motor ensure a maximum push/pull force of 6000N and a stroke speed of 5mm/s under no-load conditions.
Commonly used in automotive, medical devices, and the engineering industry, this linear actuator is a reliable solution for remote, centralized, or automatic control processes. It is composed of essential components such as the drive motor, reduction gear, screw, nut, guide sleeve, pushrod, and more.
Applications:
- Autos, solar tracking system, agricultural machinery
- Industrial electric lifting system, medical electric bed
- Electric equipment: Electric sofa, Electric lifting lever
Note: The actual product may vary in terms of color and markings. Avoid direct connection with AC power, exceeding maximum push/pull values, and incomplete strokes with power.
Caution: High-frequency operation and high temperatures may shorten the product's lifespan.
Package Includes:
- 1 x Linear Actuator Stroke Length 6000N 5mm/s 12V 300MM
* Images are for illustration only; actual product may vary.
