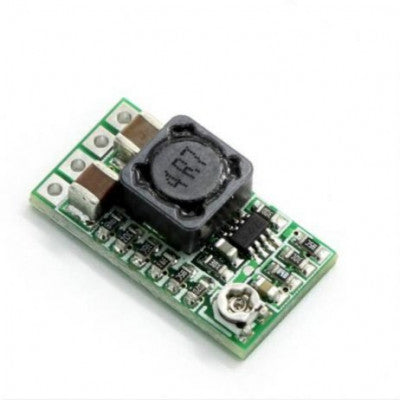

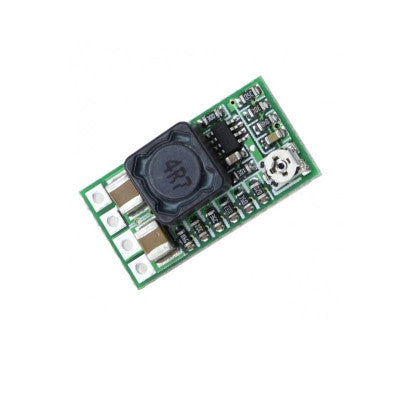

MINI Super Size (20 x 10 mm) DC Step-Down Converter Power Module
An efficient power module for various applications
- Input Voltage: DC 4.5-24V
- Output Voltage: Integration adjustable and fixed output, back side can choose fixed output voltage
- Adjustable Range: 0.8-17V, fixed voltage (1.8V, 2.5V, 3.3V, 5V, 9V, 12V)
- Output Current: 3A (max), actual testing input 12V output 1.5A
- Transform Efficiency: 97.5% (max) (6.5 to 5V 0.7A)
- Switch Frequency: 500KHz
- Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
- Operating Temp.: -40 Celsius-85 Celsius
- Output Overvoltage Protection: No
- Static Current: 0.85MA
- Load Adjust Rate: +-1%
- Voltage Adjust Rate: +-0.5%
- Dynamic Response Speed: 5% 200uS
- Output Short Circuit Protection: Yes
- Input Transposition Protection: No
- Enable Control: Yes
Top Features:
- Integrally molded power inductor
- Synchronous rectifier control chip
- Smaller and more efficient design
- Can be used for various applications
This Module can be used as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.).
*Images are for illustration only; actual product may vary.
