12V 24V 36V 40A PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case
High Power 12V/24V/36V 40A PWM DC Reversible Motor Controller
- Input voltage: DC12 to 36V (equal to the rated voltage of the motor)
- Output voltage: linear underload
- Maximum current: 50A
- Continuous current: 40A
- Speed regulation type: current regulation
- Speed regulation mode: potentiometer (linear)
- Support motor: DC brush motor
- Rotation: Toggle Forward and reverse
- Speed range: 0-100%
- Wiring type: terminal Knob
- Potentiometer: 100K (with switch)
- Wiring type: fence terminal block
- Product weight: 173g

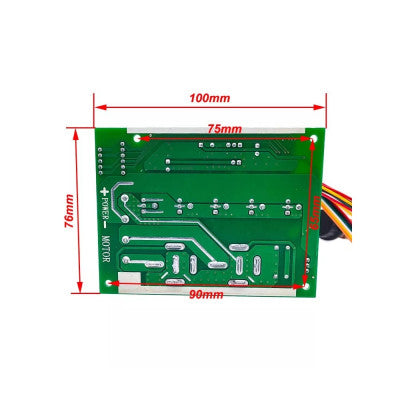

- Board Dimensions (L x W x H) mm: 100 x 76 x 28
Features:
- High Power automotive relays
- Adjustable Knob for output operating Voltage
- Toggle rocker switch for changing motor rotation direction

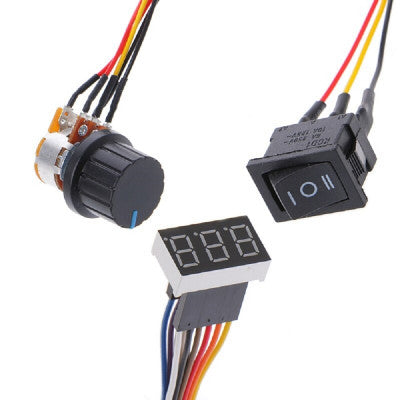

- 3-digit seven-segment LED display for showing selected Voltage
A motor controller is a device or group of devices that serves to govern in some predetermined manner the performance of an electric motor. It might include a manual or automatic means for starting and stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque, and protecting against overloads and faults.
The 40A PWM controller is equipped with High Power automotive relays, a Knob to adjust the output operating Voltage, a toggle rocker switch to change motor rotation forward-reverse direction, and a 3-digit seven-segment LED display to show the selected Voltage.
Connections:
- 1 x PWM DC Motor Speed Controller Forward Reverse Adjustable Knob Switch with Case
*Images are for illustration only; actual product may vary.
