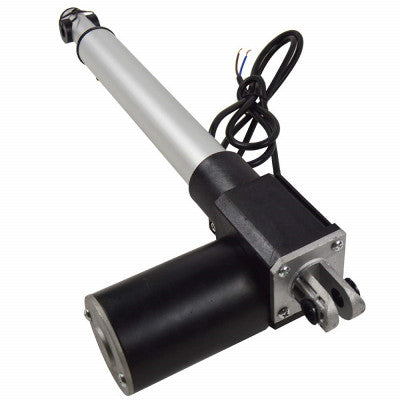

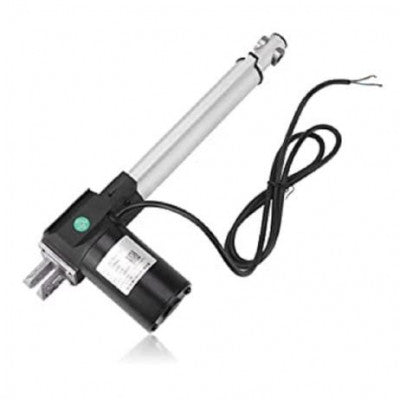

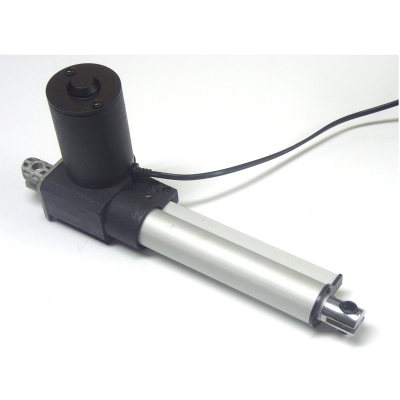

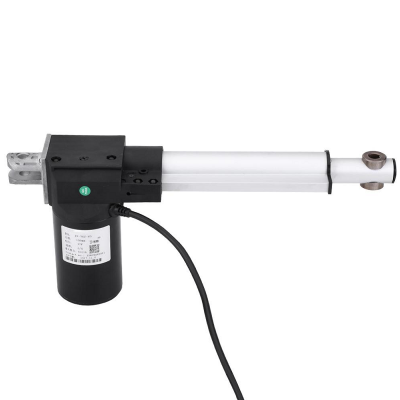

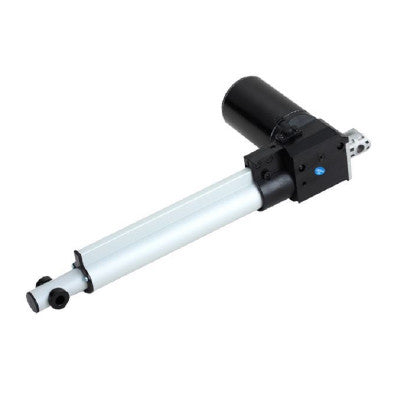

Miniature Linear Actuator Stroke Length 150MM, 5mm/S, 6000N, 12V
An electric push rod ideal for various industrial applications
- Stroke Length: 150MM
- Operating Voltage: 12V
- Body Material: Aluminium Alloy
- Operating Temperature Range: -20 to 80°C
- Noise Level: <40 dB
- Cable Length: 50 cm
- Mounting Hole Diameter: 10 mm
- Motor Diameter: 65 mm
- Protection Standard: IP54
- Self Locking Force: 6000N
- Speed at Full Load: 5 mm/Sec
- Speed at No Load: 7 mm/Sec
- Length: 37 cm
- Total Width: 7 cm
- Height: 15 cm
- Weight: 1.85 Kg
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
This electric push rod is a versatile solution for industrial, agricultural machinery, construction, and more. It transforms motor motion into linear reciprocating action, suitable for remote, centralized, or automatic control.
With reliable performance, sensitive action, and stable running, this push rod offers good environment adaptability. It features high-quality metal material, a high-performance motor, and a built-in stroke switch. The maximum push/pull force is up to 6000N, with a stroke speed of up to 5mm/s under no-load conditions.
Commonly used in automotive, medical devices, engineering, and agricultural machinery, this electric push rod ensures efficient operation in various applications.
Applications:
- Autos, solar tracking system, agricultural machinery
- Medical electric beds, surgical beds, traction beds
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc.
Product Applications include TV lift tables, massage beds, electric beds, medical chairs, electric equipment, and more.
Package Includes:
- 1 x Linear Actuator Stroke Length 6000N 5mm/s 12V 150MM
Images are for illustration only; actual product may vary.
