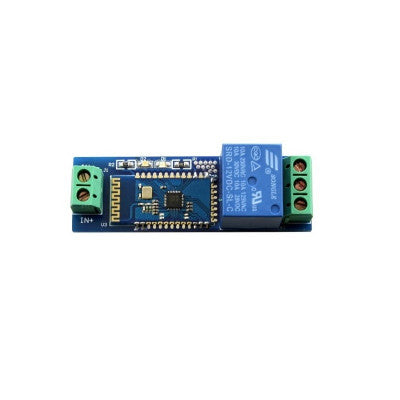

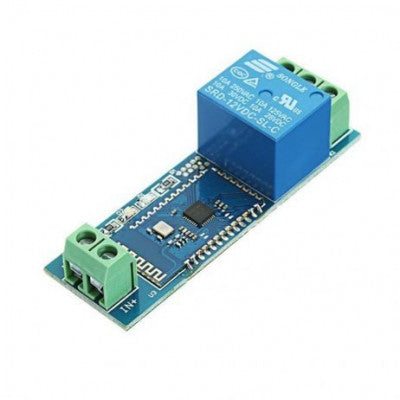

DC 12V 1 Channel Bluetooth Wireless Control Relay Module
Control appliances wirelessly with this Bluetooth relay module
- Operating Voltage: 12VDC
- Relay Channels: 2
- Maximum Current: 10A
- Bluetooth Module: SPP-C Bluetooth 2.1
- Control Distance: 10m
- Dimensions: 65 x 41 x 19 mm
- Weight: 35 gm
Top Features:
- Easy setup and pairing with Android phones
- Optocoupler isolation for anti-interference
- LED indicators for Bluetooth and relay status
- Diode effusion protection for short response time
The DC 12V 1 Channel Bluetooth Wireless Control Relay Module features 2 relay channels that can handle appliances of 230VAC or 30VDC up to 10A current. The onboard integrated SPP-C Bluetooth serial slave module allows easy control of relay switching via a mobile phone app.
The module includes LED indicators for Bluetooth and relay status. LED D1 (Blue) indicates the Bluetooth state, with different blinking patterns for search, pairing, and connection status. LED D2 (Red) is the relay indicator showing the ON-OFF status.
With optocoupler isolation, the module offers strong anti-interference ability. It operates on 12VDC and has an effective control distance of 10m. The module also includes N76E003/STM8S003 and SPP-C Bluetooth 2.1 modules for efficient operation.
Package Includes: 1 x DC 12V 1 Channel Bluetooth Wireless Control Relay Module
* Images are for illustration only; actual product may vary.
