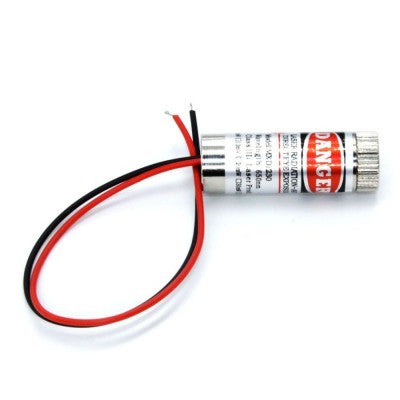

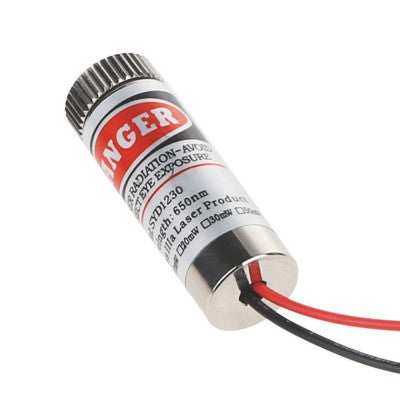

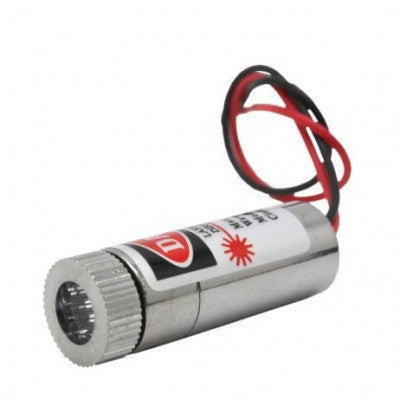

12mm 5mW Red Point Laser Module MXD1230
Adjustable laser module suitable for electronic projects
- Input Voltage: 3V - 6V DC
- Input Current: 40mA
- Wavelength: 650nm
- Output Type: Red POINT
- Cable Length: 13cm
- Length: 35mm
- Width: 12mm (Body Diameter)
- Weight: 14g
- Package Includes: 1 x Red Point Laser Module MXD1230
Features:
- Adjustable focus points
- Practical test for point head
- Reflection visible to random target >1000m
- Intensity can be adjusted with help of lens ring head
Easy to install, durable, and portable, this laser emission head is suitable for 3V-6V 5mW standard with a 6mm outside diameter. It can be used to connect diode tubes for multiple uses. This laser diode module is efficient and useful for electronic projects. Create a laser radiation sensor or a laser harp with an Arduino development board by simply connecting power to the red and black wires.
Note: This module does not emit the RED-Line or Single RED Cross LINE. Use a DC power supply of 3~6V. Caution: High output power, wear goggles when testing. Do not direct the laser beam towards eyes of a person or an animal. Red cord is anode, black cord is cathode.
* Images are for illustration only; actual product may vary.
