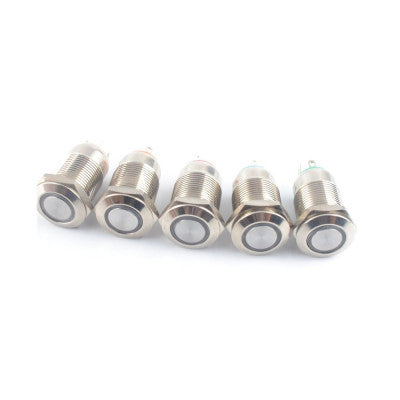

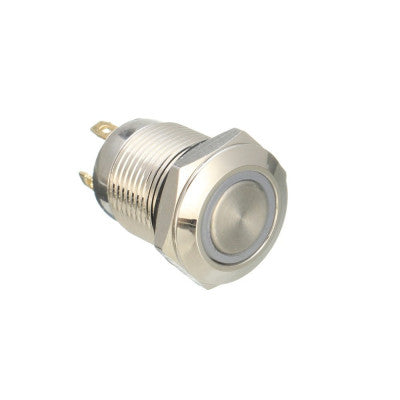

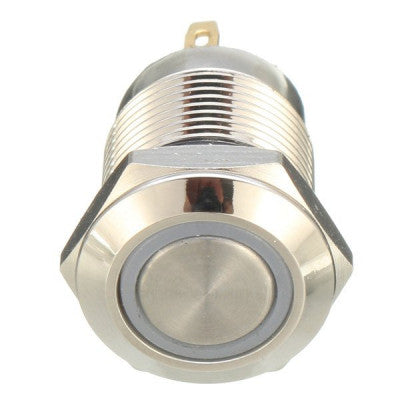

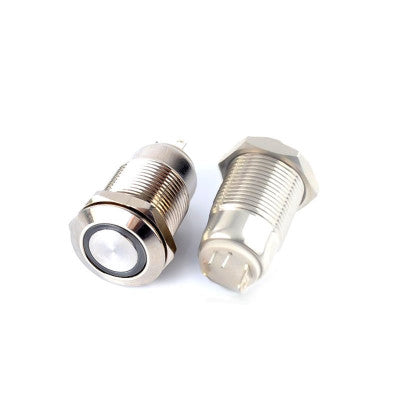

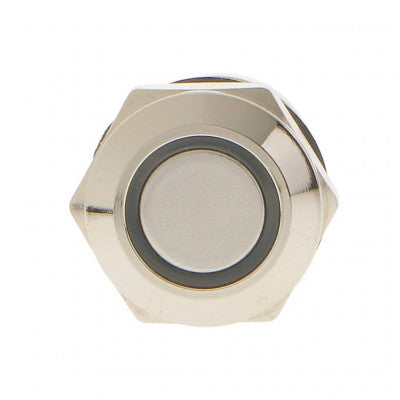

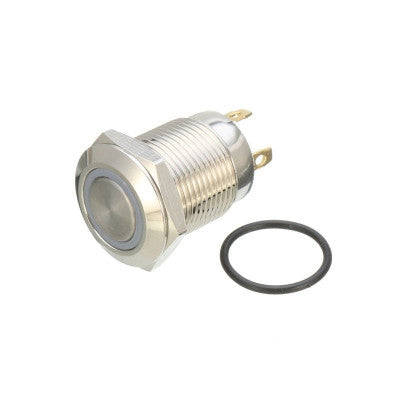

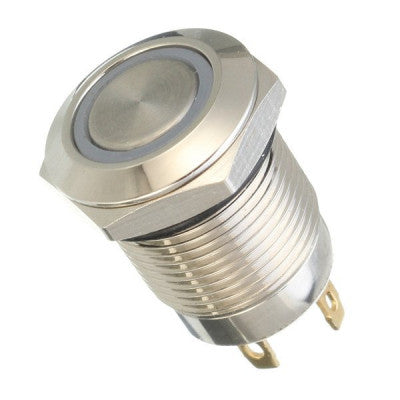

12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-button
A heavy-duty push-button switch with an illuminated Green LED ring
- Operating Voltage: 12 VDC
- Max. Operating Current: 2A MAX
- Light Color: Green
- On/Off Function: Push to ON and Push to OFF
- Switch Type: Momentary/Latching
- Mounting Hole Diameter: 12 mm
- Contact Type: Solder Type
- Contact Material: Silver Alloy
- Contact Resistance: 50 M
- Insulation Resistance: 1000 M
- Operating Temperature Range: -20 to 55°C
- Operation Force: About 3-5N
- Operation Stroke: 2-5mm
- Body Material: Stainless Steel and Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP66
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch
- Inbuilt Colorful Ring illumination LED

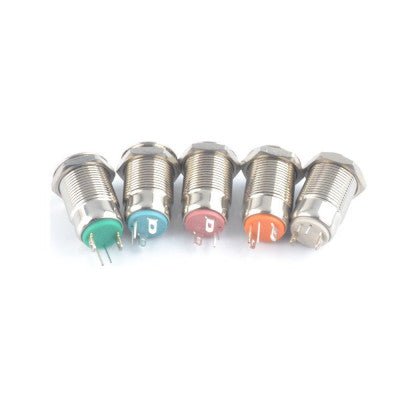

- Available in Various LED Color
This Self-lock Non-Momentary Metal Push button Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Green LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives a premium look to your dashboard or control panel with an LED light ring around the push area of the switch.
These switches are available in various LED light colors, so you can choose the one that suits your application purpose. The switch comes with Non-Momentary Self-Lock action, meaning it holds its physical position with ON/OFF state until you press it again. It has a threaded head and a nut, making it perfect for mounting and installation.

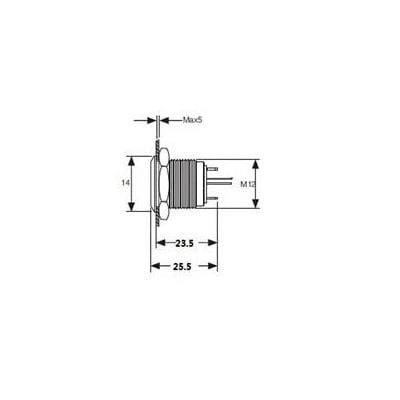

The stainless steel body and IP67 protection rating provide the best environmental protection and long operational life. This button is perfect for basic On/Off functions. The overall length (including leads) is 26mm and has small solder lugs for connection. These non-momentary Self Lock buttons are rated up to 3A and 12 VDC, while the LED is rated for 5V.
With glowing, your desired colorful light ring itself in the switch gives an attractive design and premium look that complements quality panels and dashboards.
Package Includes:
- 1 x 12mm 12V Ring Light Self-Lock Metal Switch-Green Light
*Images are for illustration only; actual product may vary.
