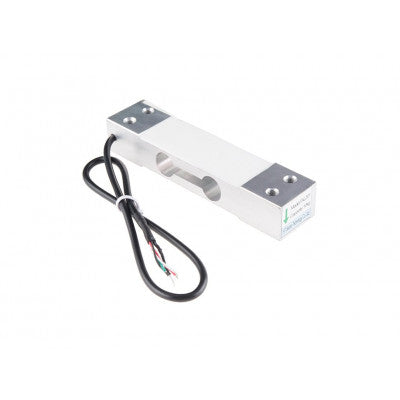

Standard Load Cell for Weight Measurement
A transducer for measuring weight up to 120 Kg with precision.
- Parameter: Single Point Load Cell
- Total Precision: C3 class
- Material: Aluminum Alloy
- Surface: Anodized Treatment
- Protection: IP65
- Suggested Platform Size: 350 x 350 mm
- Applications: Weighing Scales, Retail, Bench & Counting Scales
- Rated Load: 120 Kg. Max
- Rated Output: 2.0mV/V +/- 5%
- Zero Balance: +/- 1% Full Scale
- Input Resistance: 405 +/- 6 Ohm
- Output Resistance: 350 +/- 3 Ohm
- Excitation Voltage: 5-12V DC
Key Features:
- Aluminum Alloy Material
- IP65 Protection
- 350 x 350 mm Platform Size
- Rated Load up to 120 Kg
A load cell is a transducer that generates an electrical signal proportional to the measured force. It is commonly used in weighing machines where the force sensed by strain gauges is converted to an electrical signal. Load cells typically consist of four strain gauges in a Wheatstone bridge configuration.
The output signal, usually in millivolts, requires amplification before being used. Load cells find applications in weighing scales, retail, and universal testing machines. The standard load cell provided has a precision of C3 class and is suitable for various weighing applications.
Method of connecting wire:
I/P - Red(+), Black(-)
O/P - Green(+), White(-)
