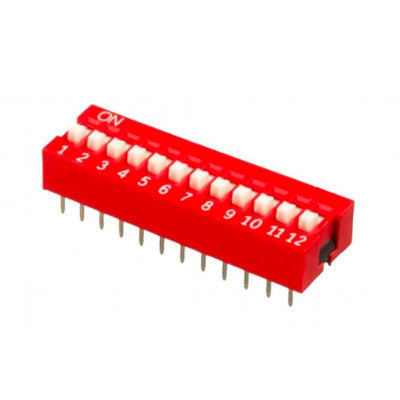

12 Way DIP Switch
An electronic component for circuit control with 12 positions in 1 package.
- No of Pins: 12 way
- Type: 12 DIP (Dual-In-Line)
- Max Operating Voltage: 50 VDC
- Max Current (Carrying Capacity): 150 mA DC
- Max Switching: 0.8 W
- Contact Resistance: <100 m?
- Insulation Resistance (at 100 VDC): >100 M?
- Test Voltage (1 minute): 500 VAC
- Life Expectancy: 2000 operations
- Operating Temperature: -20 to +80°C
- Mounting Type: Through Hole
- Pitch: 2.54 mm
Top Features:
- 12 positions in 1 package
- DIP (Dual-In-Line) type
- Max operating voltage of 50 VDC
- 150 mA DC carrying capacity
An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. The 12 positions or 12 in 1, Dual In-Line Package (DIP) SPDT slide switch, namely the more traditional toggle switch, is a set of electrical switches packed in a small box or housing. This DIP single pole double throw (SPDT) switch forces the operator to choose between connecting to either one of two terminals, ensuring that the switch will remain connected to one or the other, and the two terminals will never be connected. Designed for easy mounting on printed circuit boards, this switch provides various ranges of input to the electronic device, allowing you to control the input effortlessly.
Package Includes: 1 x 12 Way DIP Switch
* Images are for illustration only; actual product may vary.
