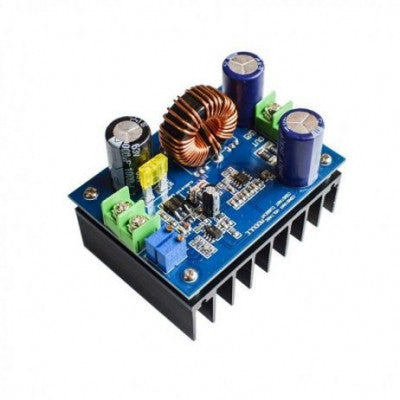

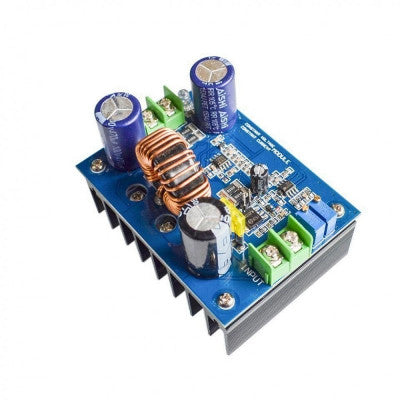

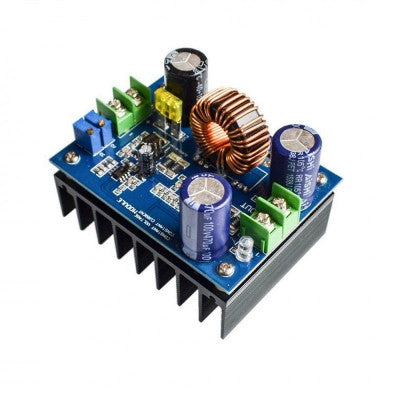

DC-DC 600W 10-60V to 12-80V Step-up Boost Converter Module
A robust DC to DC Step-up Boost Converter with wide voltage input and adjustable output.
- Module Type: Step-Up (Boost)
- Input voltage: 12V-60V
- Input Current: Maximum input current 15A
- Output voltage: 12V-80V adjustable
- Output Current: Maximum output current 10A
- Output Power: 600W
- Short circuit protection: Fuse (Input 20A Fuse)
- Overcurrent protection: Yes
- Input reverse polarity protection: None, (if necessary please enter the string into the diode)
- Operating frequency: 150KHz
- Minimum voltage difference: 2V
- Conversion Efficiency: Up to 95%
- Dimension: 76 x 60 x 56 mm (L x W x H)
- Weight (gram): 250 g
Features:
- 600W high-power booster module
- Wide voltage input: 12V to 60V
- 12V to 80V adjustable width voltage output
- Output current can be adjusted
This DC-DC Step-up Boost Converter Module is ideal for DIY regulated power supplies, vehicle power supplies for laptops, high-power notebook mobile power, solar panel regulators, and more. The module includes a large heatsink for efficient heat dissipation.
Note: Nominal 600W maximum power of the module under certain conditions, in case of different input voltage, maximum output power will decline.
How it Works:
INSTRUCTIONS: First, the input voltage range options: the default setting is 12-60V input, when you use the 12V battery or three strings, four strings of lithium, can put on the map with a jumper jumpered choose 9-16V input.
Second, the output current adjustment method: adjust CV potentiometer, according to your battery or LED, the output voltage is set to your desired voltage value. Such as 10 string LED voltage adjustment 37V, four strings of 55V and other adjustable battery. Counterclockwise CC potentiometer set around 30 laps, the output current is set to the minimum, connected to the LED, adjust the CC device to your desired current.
Images are for illustration only; actual product may vary.
