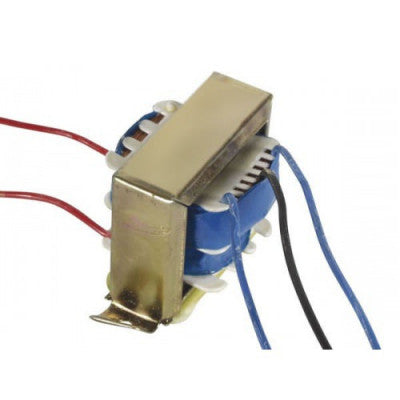

12-0-12 5Amp Center Tapped Step Down Transformer
A General Purpose Chassis Mounting Mains Transformer
The 12-0-12 5Amp Center Tapped Step Down Transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. Transformer has 230V primary winding and center tapped secondary winding. The transformer has flying colored insulated connecting leads (Approx 100mm long).
- Spec name: Solid Core and Winding
- Material: High permeability silicon steel
The transformer's construction is written below with details of Solid Core and Winding. The transformer's cores are made of high permeability silicon steel, which greatly reduces the magnetizing current and confines the flux to a path that closely couples the winding. The Transformer gives outputs of 12V, 12V and 0V.
- Input Voltage: 230V AC
- Output Voltage: 12V, 12V or 0V
- Output Current: 5 Amp
- Mounting: Vertical mount type
- Winding: Copper
Features of 12-0-12 5 Ampere Center Tapped Transformer:
- Soft Iron Core
- 5 Amp Current Drain
- 100% Copper Winding
Applications of 12-0-12 5 Ampere Center Tapped Transformer:
- DIY projects requiring high current drain
- On chassis AC/AC converter
- Designing a battery charger
