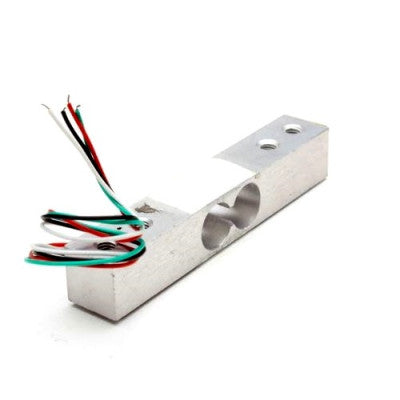

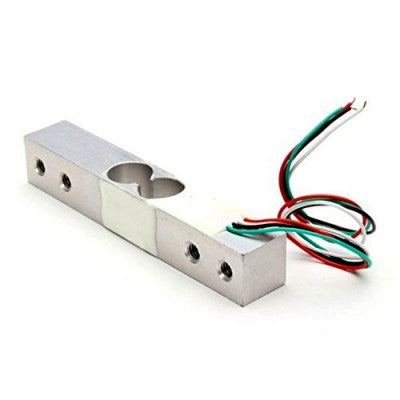

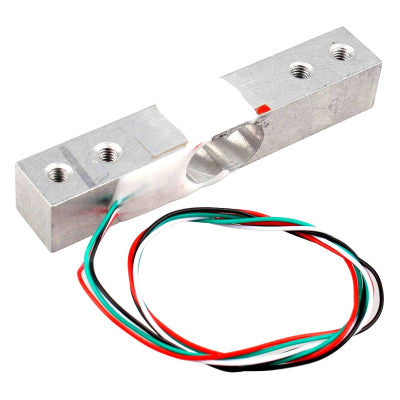

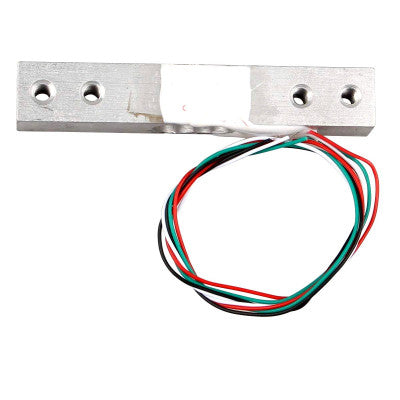

Standard Load Cell
Transducer for Accurate Weight Measurement up to 10 KG
A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. This particular model is a standard load cell for measuring weight up to 10 Kg. The output of this load cell is in milli-volts and can't be directly measured by a micro-controller, necessitating an ADC with high resolution or an instrumentation amplifier to make the load cell's output readable to a micro-controller.
- Capacity: 10KG
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): EMax/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- Temperature effect on zero(%RO/°C): 0.003
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Load cell material: Aluminium
- Connecting cable: ø4.2x350mm
- Method of connecting wire: Red(+),Black(-),Green(+),White(-)
- Perfect for electronic platform scales
- Designed for digital scales
- Ideal for parcel post scales
- Suitable for electronic balances
